Aerocool B508A Flow + LUX 650W – Mid Tower case with tempered glass, GPU support up to 340mm, and 650W 80Plus Bronze PSU with flat cables and full protection. | 3399 EGP

Aerocool B508A Flow LUX 650W Mid Tower case with tempered glass GPU support up to 340mm and 650W 80Plus Bronze PSU with flat cables and full protection.

3399 LE
Availability: In Stock
shipped by (sigma)
Point: 20

Brand : AeroCool brand

Model : B508A

Seller : sigma

Viewed : 221 items

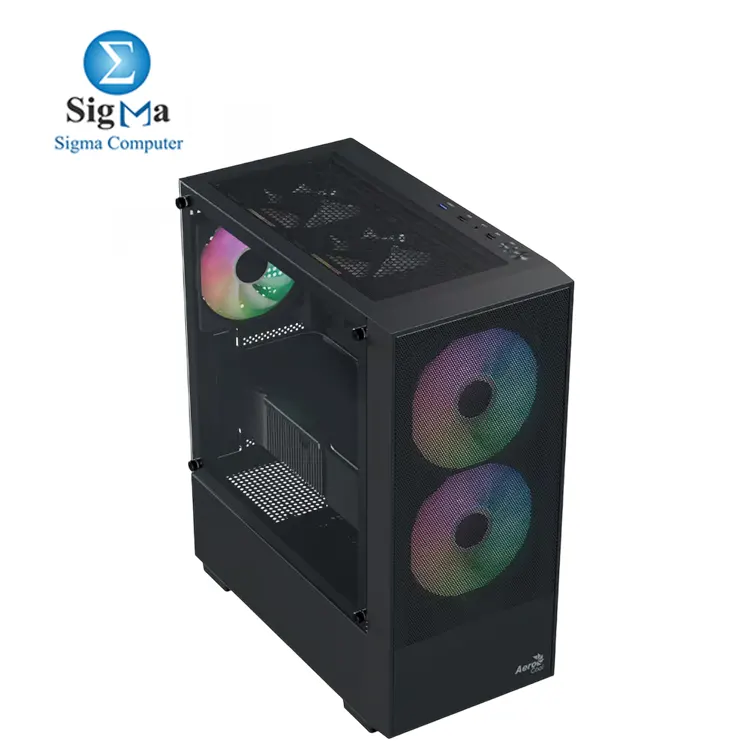

Case: Aerocool B508A Flow Black

  • Mid Tower, supports ATX/m-ATX/mini-ITX

  • GPU clearance up to 340mm, CPU cooler up to 158mm

  • Tempered glass side panel

  • Up to 5 fans: front/top (2x 120/140mm), rear (1x 120mm)

  • Liquid cooling support: front (up to 280mm), rear (120mm)

  • 2x 3.5" & 5x 2.5" drive bays

  • 7 expansion slots

  • USB3.0 x1, USB2.0 x2, HD Audio & Mic

  • Magnetic top & bottom dust filters

  • Internal cable space: 21mm

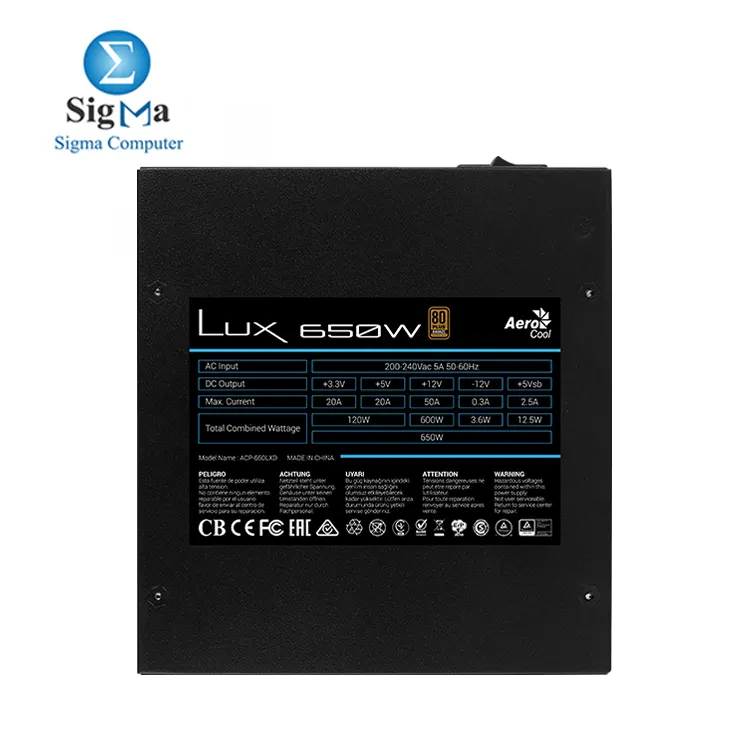

PSU: Aerocool LUX 650W Bronze

  • 80Plus 230V EU Bronze Certified (up to 88% efficiency)

  • Active PFC > 0.9

  • OPP/OVP/UVP/SCP protections

  • Silent 120mm fan with thermal control

  • Flat black cables for better management

  • Output: +12V@50A, Total power: 650W

  • Compatible with ATX12V Ver.2.4

Case: Aerocool B508A Flow Black

Model: B508A Flow-G-BK-v1
Type: Mid Tower
Color: Black, White
Body Material: SPCC
Front Panel Material: ABS, SPCC
Steel Thickness: 0.5mm
Motherboard Support: ATX / Micro-ATX / Mini-ITX
Dimensions (Internal): 200 x 440 x 350 mm (W x H x D)
Dimensions (Overall): 206.5 x 450.5 x 400.55 mm (W x H x D)
Drive Bays:

  • 3.5": 2 Max (1 x 3.5", 1 x 3.5"/2.5")

  • 2.5": 5 Max (4 x 2.5", 1 x 2.5"/3.5")
    Expansion Slots: 7
    GPU Clearance: Up to 340mm
    CPU Cooler Clearance: Up to 158mm
    Cooling Support:

  • Front: 2 x 120mm or 2 x 140mm

  • Top: 2 x 120mm or 2 x 140mm

  • Rear: 1 x 120mm
    Liquid Cooling Support:

  • Front: 120 / 240 / 280mm Radiator (Optional)

  • Rear: 120mm Radiator (Optional)
    I/O Ports: USB 3.0 x1, USB 2.0 x2, HD Audio & Mic
    Cable Management Space: 21mm
    Dust Filters: Top (magnetic), Bottom
    Side Panel: Tempered Glass
    PSU Support: ATX PSU up to 185mm (Optional)


Power Supply: Aerocool LUX 650W

Certification: 80Plus 230V EU Bronze (Efficiency up to 88%+)
Power Factor Correction: Active PFC (>0.9)
Protections: OPP / OVP / UVP / SCP
Cooling: Silent 120mm fan with thermal speed control
Ventilation: 30% increased airflow with optimized chassis design
Compatibility: Supports all Intel form factors up to ATX12V Ver.2.4
Cables: Soft, flat black cables for better cable management

AC Input: 200–240VAC, 5A, 50–60Hz
DC Output:

  • +3.3V: 20A

  • +5V: 20A

  • +12V: 50A

  • -12V: 0.3A

  • +5VSB: 2.5A
    Max Combined Power:

  • +3.3V & +5V: 120W

  • +12V: 600W

  • -12V: 3.6W

  • +5VSB: 12.5W
    Total Power: 650W
    EAN Code: 4718009156241
