GAME IN STYLE
The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.
Supports 10th Generation Intel Core / Pentium Gold / Celeron Processors for LGA 1200 socket
Supports dual channel DDR4 memory up to 128GB (4800MHz)
Lightning USB 20G is powered by the ASmedia 3241 USB 3.2 Gen 2x2 controller, offering never before seen USB speeds up to 20Gb/s from the Rear USB Type-C port
Twin Turbo M.2 with M.2 Shield Frozr delivers transfer speeds of up to 32 GB/s for ultra-fast SSDs
On-board 2.5G LAN plus Gigabit LAN with with Wi-Fi 6 (802.11ax)
Pre-installed I/O Shielding for convenience and protection from electrostatic discharge
Intel® Z490 Chipset
MEMORY
4x DDR4 memory slots, support up to 128GB1
Supports 1R 2133/2666/2933 MHz*
1DPC 1R Max speed up to 5000+ MHz
1DPC 2R Max speed up to 4500+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Please refer www.msi.com for more information on compatible memory
See supported memory
EXPANSION SLOTS
1x PCIe 3.0 x16 slot (from CPU)
1x PCIe 3.0 x16 slot (x4 mode, from PCH)
2x PCIe x1 slots (from PCH)
ONBOARD GRAPHICS
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
MULTI-GPU
Supports AMD® 2-Way CrossFire™ Technology
STORAGE
Intel® Z490 Chipset
6x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
Supports up to PCIe 3.0 x4 and SATA 6Gb/s
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices1
M2_2 slot supports 2242/ 2260 /2280 storage devices2
Intel® Optane™ Memory Ready*** 3
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID
Intel® Z490 Chipset
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 PCIe storage devices
USB
Intel® Z490 Chipset
1x USB 3.2 Gen 2 10Gbps Type-A port on the back panel
7x USB 3.2 Gen 1 5Gbps (4 Type-A ports on the back panel, 2 ports through the internal USB connector, 1 Type-C internal connector)
2x USB 2.0 ports on the back panel
4x USB 2.0 ports available through the internal USB connectors, hub-GL850G
ASMedia® ASM3241
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
AUDIO
Realtek® ALC1200-VD1 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1x Realtek® RTL8125B-CG 2.5G LAN Controller
WIFI & BLUETOOTH
Intel® AX201
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
WiFi 6 Pre-Certified
Supports Bluetooth® 5.1 , FIPS, FISMA
The Wireless module is pre-install in the M2 (Key-E) slot
Only support windows 10 64-bit
INTERNAL CONNECTORS
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
6x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x chassis intrusion connector
1x Clear CMOS jumper
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x TPM module connector
1x TBT connector 1
1x RTD3 connector
Thunderbolt card need support RTD3

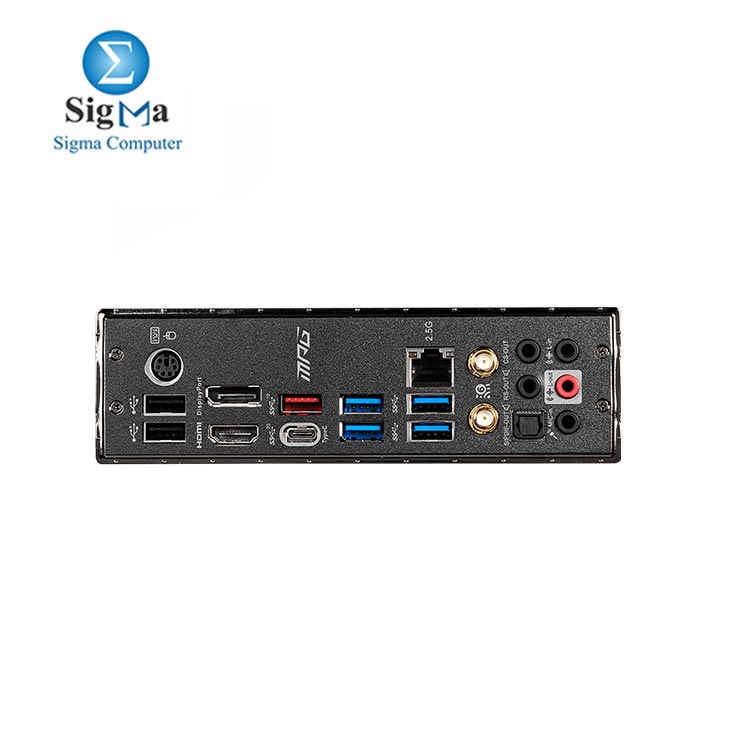

BACK PANEL PORTS
PS/2 Combo Port
DisplayPort
USB 3.2 Gen 2 10Gbps (Type-A)
LAN Port
HD Audio Connectors
USB 2.0
HDMI Port
USB 3.2 Gen 2x2 20Gbps (Type-C)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Optical S/PDIF OUT
MEG Z490 edge wifi
DIMENSIONS
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING
9 mounting holes
OPERATING SYSTEM
Support for Windows® 10 64-bit
| Category | Desktop |
| Subcategory | Motherboard |
| Brand | MSI |
| Model | MPG Z490 |
| Motherboard Type | Intel |
| Socket | LGA 1200 |
| chipset | Z490 |
