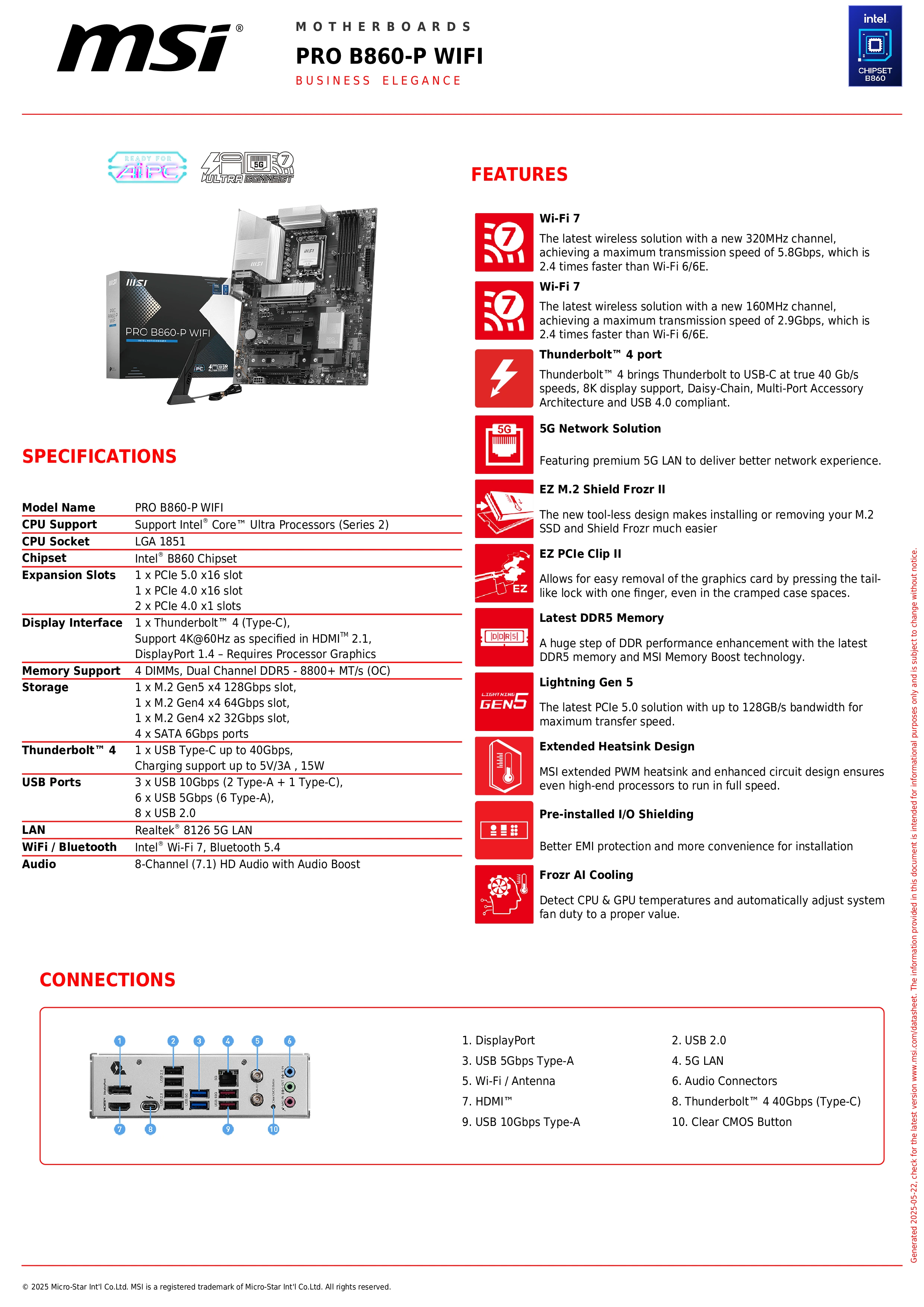

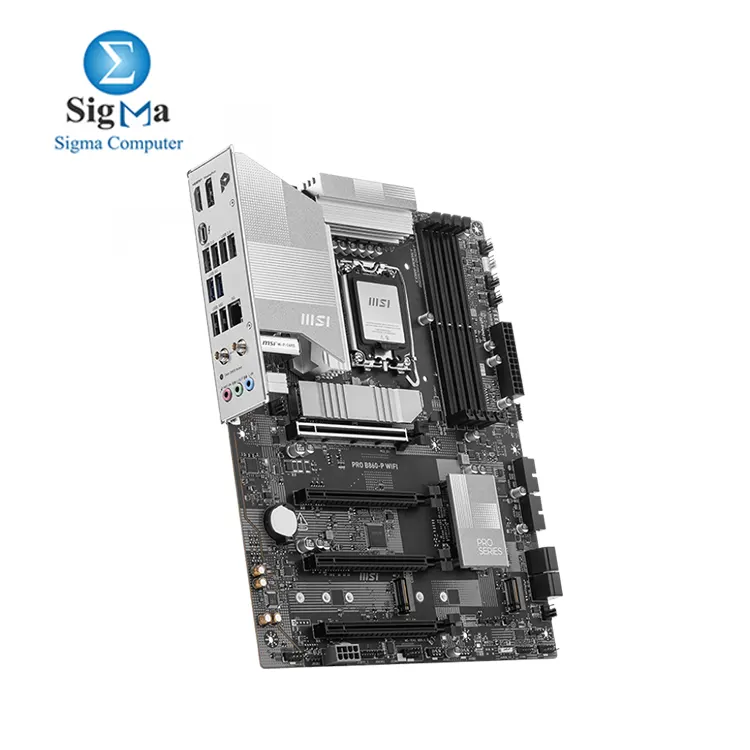

MSI PRO B860-P WIFI
-
Support: Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
-
Memory: Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
-
Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
-
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
-
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
-
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
-
Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
-
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Chipset: INTEL B860
CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851
Memory:
-
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
-
Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
-
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8800+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s
-
Supports Intel® POR Speed and JEDEC Speed
-
Supports Memory Overclocking and Intel® XMP 3.0
-
Supports Dual-Controller Dual-Channel mode
-
Supports Non-ECC, Un-buffered memory
-
Supports CUDIMM
-
The DIMM slots on this motherboard only have single-sided latches.
-
Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics:
-
1x HDMI™ (HDMI™ 2.1, up to 4K 60Hz*)
-
1x DisplayPort (DP 1.4, up to 4K 60Hz*)
-
1x Type-C DisplayPort (Thunderbolt™ 4, DP 2.1, up to 4K@120Hz / 8K@60Hz*)
Available only on processors featuring integrated graphics.
Slot:
Audio:
Storage:
-
3x M.2
• M.2_1 (CPU): PCIe 5.0 x4, supports 2280/2260
• M.2_2 (Chipset): PCIe 4.0 x4, supports 2280/2260/2242
• M.2_3 (Chipset): PCIe 4.0 x2, supports 2280/2260
-
4x SATA 6G
Please refer to the manual for M.2 SSD heatsink restrictions.
RAID:
Onboard Thunderbolt:
USB:
-

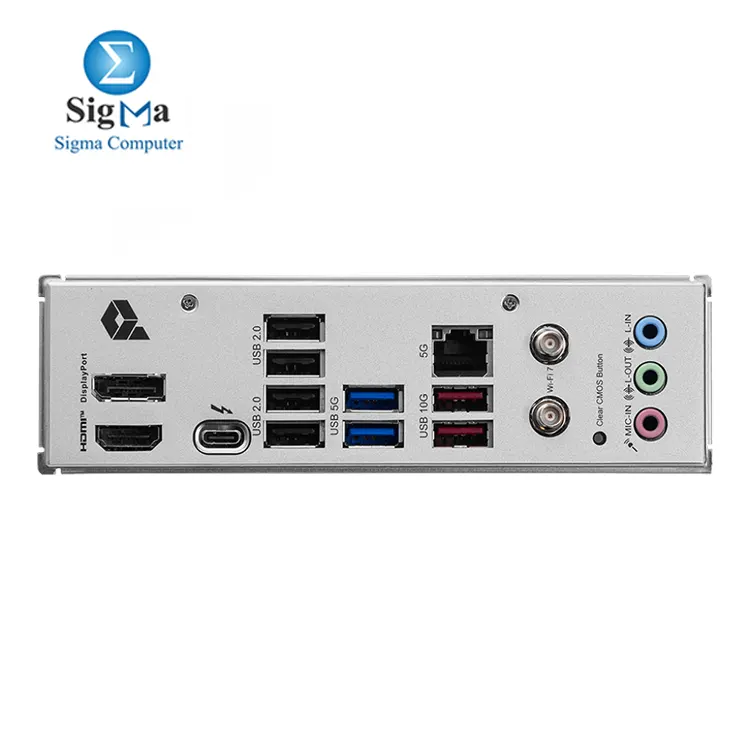

Rear: 4x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 1x Thunderbolt™ 4 (Type-C)
-
Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 10Gbps Type-C
LAN: Realtek® 8126 5Gbps LAN
Internal IO:
-
1x Thunderbolt5 card connector (JTBT5, support RTD3)
-
1x Power Connector (ATX_PWR)
-
2x CPU_PWR
-
1x PCIE_PWR 8pin
-
1x CPU Fan
-
1x Combo Fan (Pump_Sys Fan)
-
4x System Fan
-
2x Front Panel (JFP)
-
1x Chassis Intrusion (JCI)
-
1x Front Audio (JAUD)
-
1x Com Port (JCOM)
-
1x Tuning Controller connector (JDASH)
-
2x Addressable V2 RGB LED (JARGB_V2)
-
1x RGB LED (JRGB)
-
1x TPM pin header (Support TPM 2.0)
-
4x USB 2.0 ports
-
4x USB 5Gbps Type-A ports
-
1x USB 10Gbps Type-C port
Wireless LAN & Bluetooth:
-
Intel® Wi-Fi 7 (pre-installed in M.2 Key-E)
-
MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
-
Supports 802.11 a/b/g/n/ac/ax/be
-
Supports Bluetooth® 5.4, MLO, 4KQAM
6GHz and Bluetooth 5.4 availability depends on Windows 11 version 24H2 and local regulations.
LED Feature:
Back Panel Ports:
Operating System:
PCB Info:
| Category | Desktop |
| Subcategory | Motherboard |
| Brand | MSI |
| Model | PRO B860-P WIFI |
