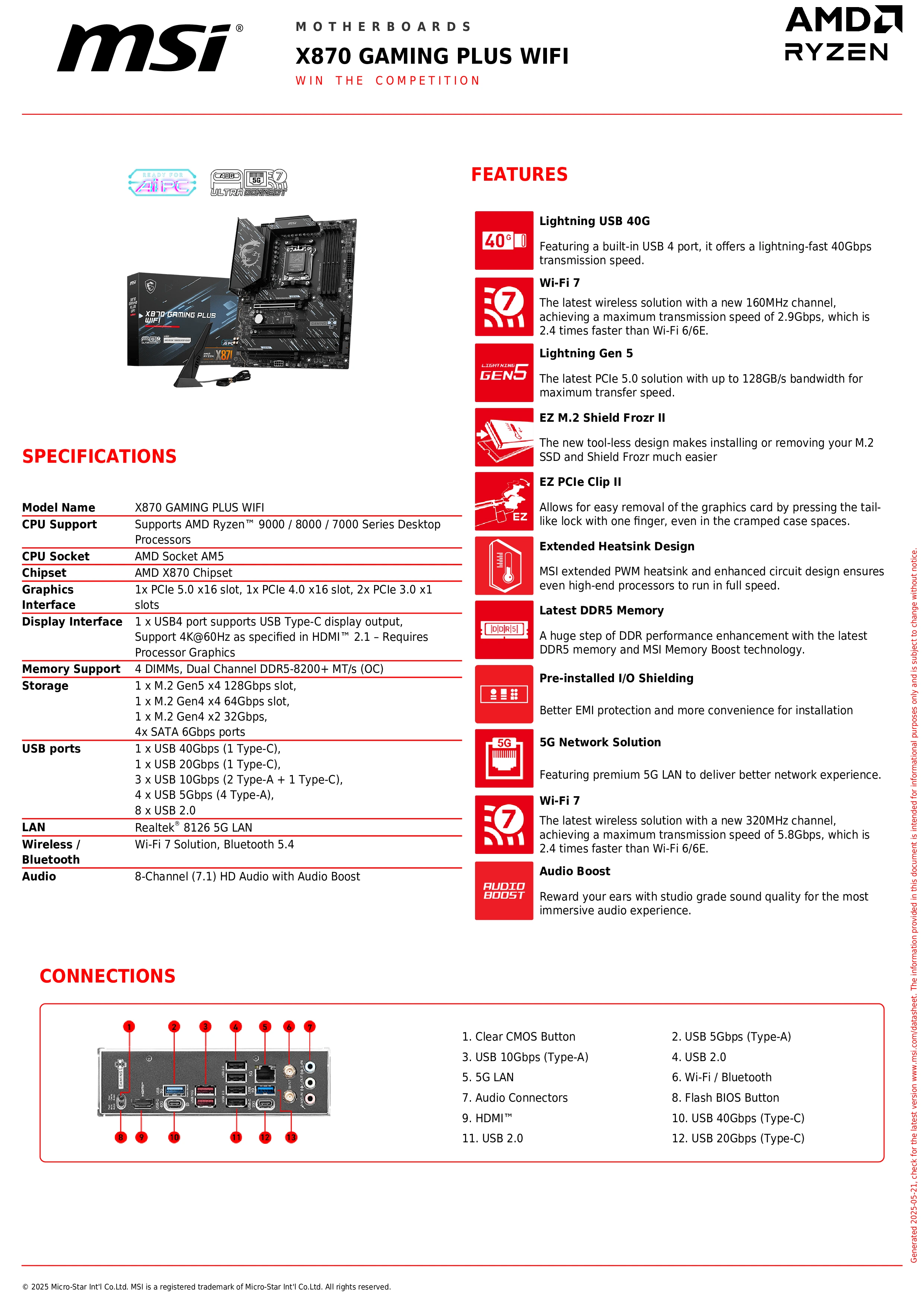

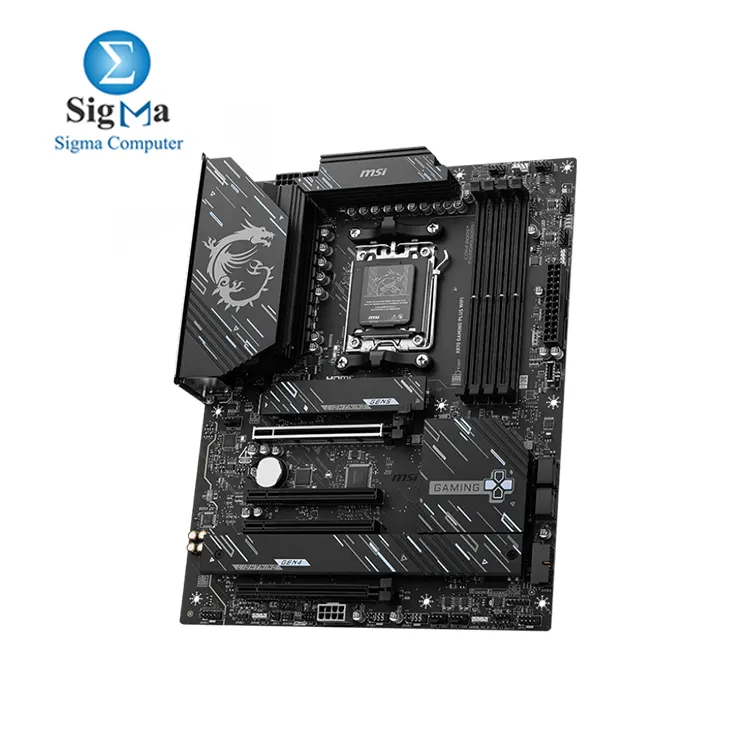

MSI X870 GAMING PLUS WIFI
Chipset: AMD X870
CPU: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Socket: AM5
Memory:
-
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
-
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
-
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
-
Supports AMD POR Speed and JEDEC Speed
-
Supports Memory Overclocking and AMD EXPO™
-
Supports Dual-Channel mode
-
Supports Non-ECC, Un-buffered memory
-
Supports CUDIMM, Clock Driver bypass mode only*
-
The DIMM slots have double-sided latches
-
Memory compatibility and supported speeds depend on CPU and memory configuration (see MSI support page for details)
*Note: CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Some CPUs may fail to boot but future BIOS updates will improve compatibility.
Onboard Graphics:
-
1x HDMI™ (HDMI 2.1, max resolution 4K 60Hz*)
-
1x USB Type-C DisplayPort (USB4® port, supporting DisplayPort 1.4 with HBR3, max resolution 4K 60Hz*)
*Available only on processors with integrated graphics. Graphics specs depend on installed CPU.
Expansion Slots:
-
4x PCI-E x16 slots
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
• PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
-
PCI_E1 slot supports:
• PCIe 5.0 x16 (Ryzen™ 9000/7000 series)
• PCIe 4.0 x8 (Ryzen™ 8700/8600/8400 series)
• PCIe 4.0 x4 (Ryzen™ 8500/8300 series)
-
PCI_E4 slot runs at x2 speed if M.2 SSD installed in M2_3 slot
Audio:
Storage:
-
3x M.2 slots
• M.2_1 (From CPU) supports PCIe 5.0 x4, 2280/2260 devices
• M.2_2 (From Chipset) supports PCIe 4.0 x4, 22110/2280 devices
• M.2_3 (From Chipset) supports PCIe 4.0 x2, 2280/2260 devices
-
4x SATA 6G ports
M2_1 slot supports:
• PCIe 5.0 x4 (Ryzen™ 9000/7000)
• PCIe 4.0 x4 (Ryzen™ 8000)
*Refer to manual for M.2 heatsink restrictions.
RAID:
-
Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
-
SATA_A1~A4 do not support RAID
-
RAID 5 only supported by Ryzen™ 9000 series processors
USB Ports:
-
4x USB 2.0 (Rear)
-
4x USB 2.0 (Front)
-
2x USB 5Gbps Type A (Rear)
-
2x USB 5Gbps Type A (Front)
-
2x USB 10Gbps Type A (Rear)
-
1x USB 10Gbps Type C (Front)
-
1x USB 20Gbps Type C (Rear)
-
1x USB 40Gbps Type C (Rear)
LAN:
Internal IO:
-
1x Power Connector (ATX_PWR)
-
2x Power Connector (CPU_PWR)
-
1x Power Connector (PCIE_PWR 8pin)
-
1x CPU Fan
-
1x Combo Fan (Pump_Sys Fan)
-
6x System Fan
-
1x EZ Conn-header (JAF_1)
-
2x Front Panel (JFP)
-
1x Chassis Intrusion (JCI)
-
1x Front Audio (JAUD)
-
1x Tuning Controller connector (JDASH)
-
3x Addressable V2 RGB LED connectors (JARGB_V2)
-
1x RGB LED connector (JRGB)
-
1x TPM pin header (Supports TPM 2.0)
-
4x USB 2.0 ports
-
2x USB 5Gbps Type A ports
-
1x USB 10Gbps Type C port
Wireless LAN & Bluetooth:
-
Wi-Fi 7 pre-installed module in M.2 (Key-E) slot
-
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
-
Supports 802.11 a/b/g/n/ac/ax/be
-
Supports Bluetooth® 5.4**, MLO, 4KQAM
*6GHz band support depends on country regulations and Wi-Fi 7 requires Windows 11 version 24H2
**Bluetooth version may update, check Wi-Fi chipset vendor for details
LED Feature:

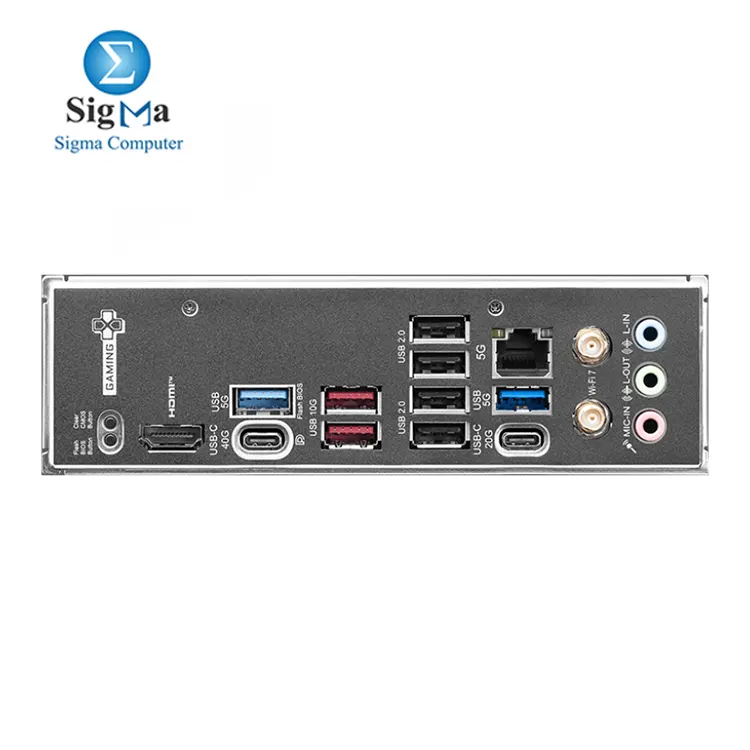

Back Panel Ports:
Operating System Support:
Box Content:
(Not specified)
PCB Info:
Key Features Summary:
-
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
-
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
-
Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB with 2oz thick copper and server-grade materials
-
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated 7W/mK, additional choke thermal pads, EZ M.2 Shield Frozr II for high performance and durability
-
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna
-
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
-
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 for secure, stable, high-speed networking
-
Audio Boost: Studio-grade sound quality for immersive gaming experience
| Category | Desktop |
| Subcategory | Motherboard |
| Brand | MSI |
| Model | X870 GAMING PLUS WIFI |
