MSI B850 GAMING PLUS WIFI AMD Ryzen AM5 DDR5 up to 256GB PCIe 5.0 Wi-Fi 7 5G LAN USB 10Gbps Realtek audio.

reviews | Write a review

12499 LE

Availability: In Stock only 2 item left

shipped by (sigma)

Point: 30

Brand : MSI

Model : B850 GAMING PLUS WIFI

Seller : sigma

Viewed : 18 items

MSI B850 GAMING PLUS WIFI

AMD Ryzen 9000/8000/7000, Socket AM5

DDR5 up to 256GB, 8200+ MT/s OC

PCIe 5.0 x16 slot, 3x M.2 (1x PCIe 5.0)

5G LAN + Wi-Fi 7 + Bluetooth 5.4

Realtek ALC897 7.1 Audio

USB 10Gbps Type-C and Type-A ports

ATX form factor, Windows 11 support

Seller note

010074149000051

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

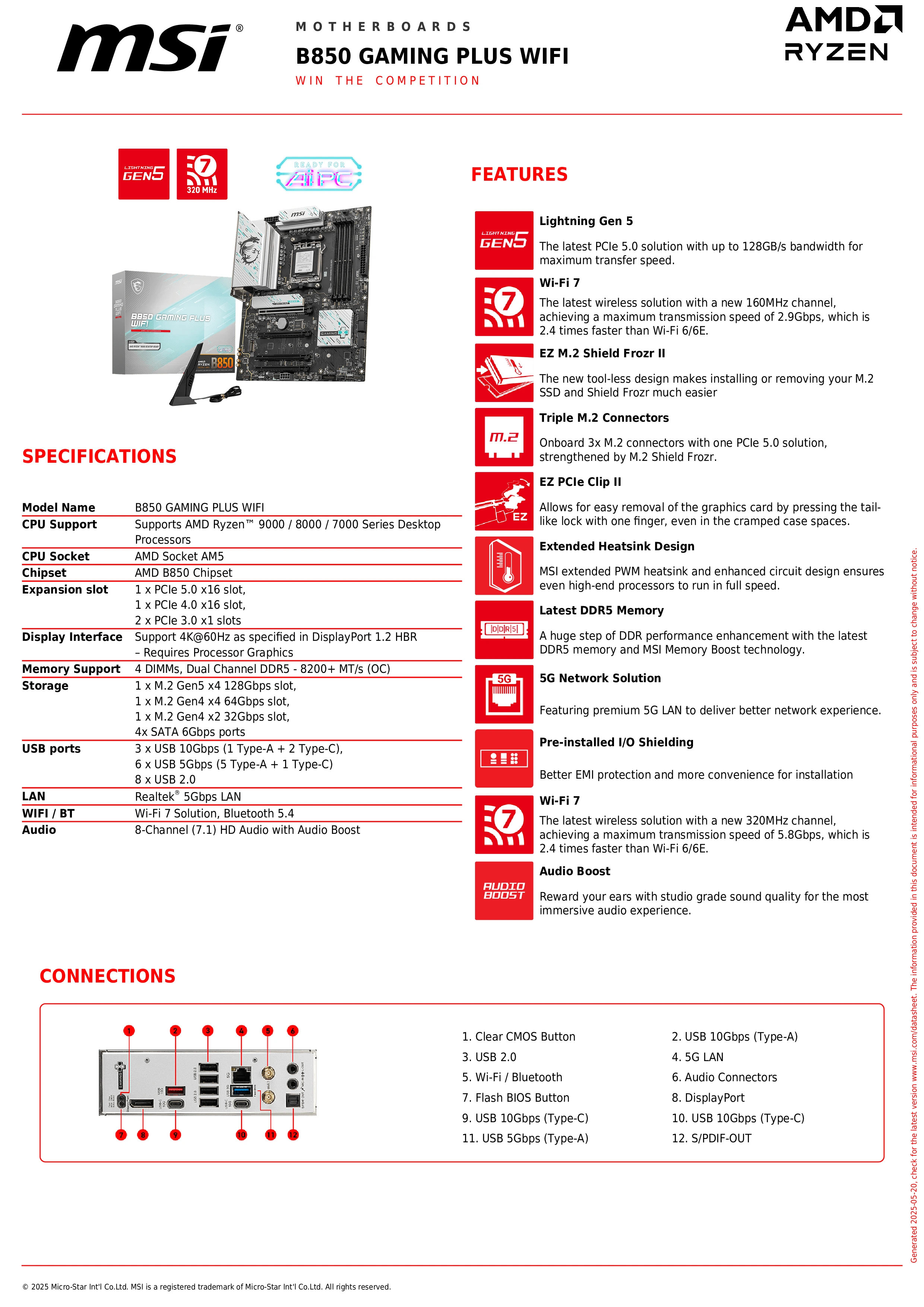

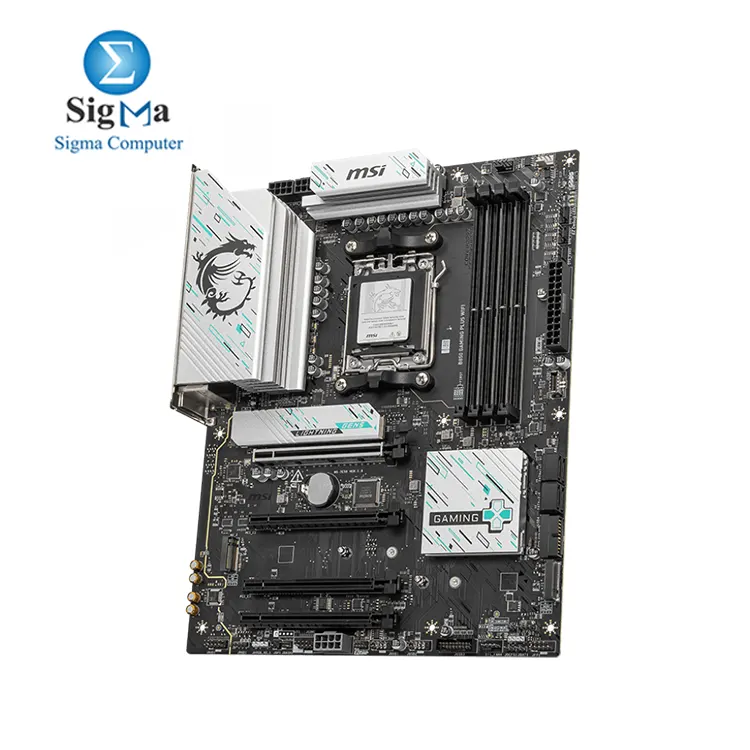

MSI B850 GAMING PLUS WIFI

CPU Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Chipset: AMD B850
Socket: AM5

Memory

4x DDR5 UDIMM, up to 256GB
Supports DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series max. OC speeds:
• 1DPC 1R: up to 8200+ MT/s
• 1DPC 2R: up to 6400+ MT/s
• 2DPC 1R: up to 6400+ MT/s
• 2DPC 2R: up to 4800+ MT/s
Dual-channel support
Supports AMD EXPO™, memory overclocking, and CUDIMM (Clock Driver bypass mode only)*
*Support may vary by CPU. Manual OC available post-boot. Future BIOS updates will improve compatibility.

Graphics Output

1x DisplayPort 1.2 (4K 60Hz)*
*Available only with CPUs that include integrated graphics

Expansion Slots

4x PCI-E x16:
• PCI_E1: Gen 5.0 x16 (Ryzen 9000/7000), Gen 4.0 x8 (Ryzen 8700/8600/8400), Gen 4.0 x4 (Ryzen 8500/8300)
• PCI_E2: Gen 3.0 x1
• PCI_E3: Gen 4.0 x4
• PCI_E4: Gen 3.0 x1
*PCI_E3 shares bandwidth with PCI_E2 and PCI_E4; will run at x2 when either are populated.

Storage

3x M.2:
• M.2_1 (CPU): PCIe 5.0 x4, supports 2280/2260 (Ryzen 9000/7000)
• M.2_2 (CPU): PCIe 4.0 x4, supports 22110/2280
• M.2_3 (Chipset): PCIe 4.0 x2, supports 2280/2260
4x SATA 6Gbps
RAID 0 & RAID 1 support for NVMe

USB Ports

Rear:
• 4x USB 2.0
• 1x USB 5Gbps Type-A
• 1x USB 10Gbps Type-A
• 2x USB 10Gbps Type-C
Front:
• 4x USB 2.0
• 4x USB 5Gbps Type-A
• 1x USB 5Gbps Type-C

LAN & Wireless

Realtek® 8126VB 5G LAN
Wi-Fi 7 (pre-installed M.2 Key-E)
• MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz)
• Up to 5.8Gbps
• Bluetooth® 5.4
*Wi-Fi 7 & Bluetooth 5.4 features require Windows 11 24H2

Audio

Realtek® ALC897
7.1-Channel High Definition Audio

Cooling & Power

12+2+1 Duet Rail Power System
Dual 8-pin CPU power connectors
Core Boost, Memory Boost
6-layer PCB with 2oz copper
Extended heatsinks, 7W/mK MOSFET thermal pads
EZ M.2 Shield Frozr II, additional thermal pads

Internal I/O

1x ATX_PWR
2x CPU_PWR (8-pin)
1x PCIE_PWR (8-pin)
1x CPU Fan
1x Pump/Combo Fan
4x System Fan
1x JAF_1
2x JFP
1x JCI
1x JAUD
1x JCOM
1x JDASH
3x JARGB_V2
1x JRGB
1x TPM header
4x USB 2.0
4x USB 5Gbps Type-A
1x USB 5Gbps Type-C

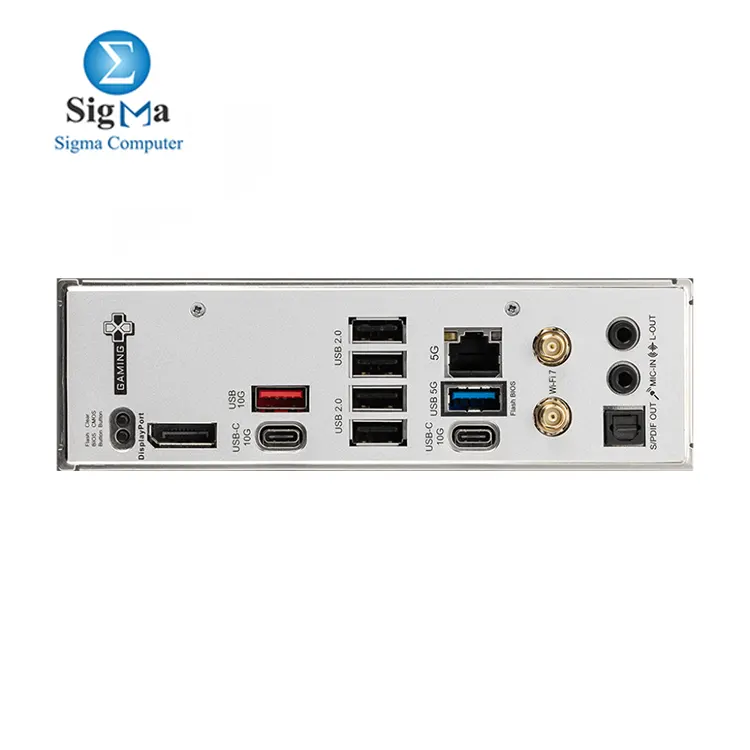

Back Panel Ports

Clear CMOS Button
Flash BIOS Button
DisplayPort
USB 2.0
USB 5Gbps Type-A
USB 10Gbps Type-A
2x USB 10Gbps Type-C
5G LAN
Wi-Fi / Bluetooth antenna ports
Audio jacks
S/PDIF-OUT

Special Features

EZ Debug LEDs
EZ M.2 Shield Frozr II
EZ M.2 Clip II
EZ PCIe Clip II
EZ Antenna
Audio Boost

Form Factor

ATX (243.84mm x 304.8mm)

Operating System

Windows® 11 64-bit

Box Content

Refer to official product page or box for included accessories.

Category	Desktop
Subcategory	Motherboard
Brand	MSI
Model	B850 GAMING PLUS WIFI
