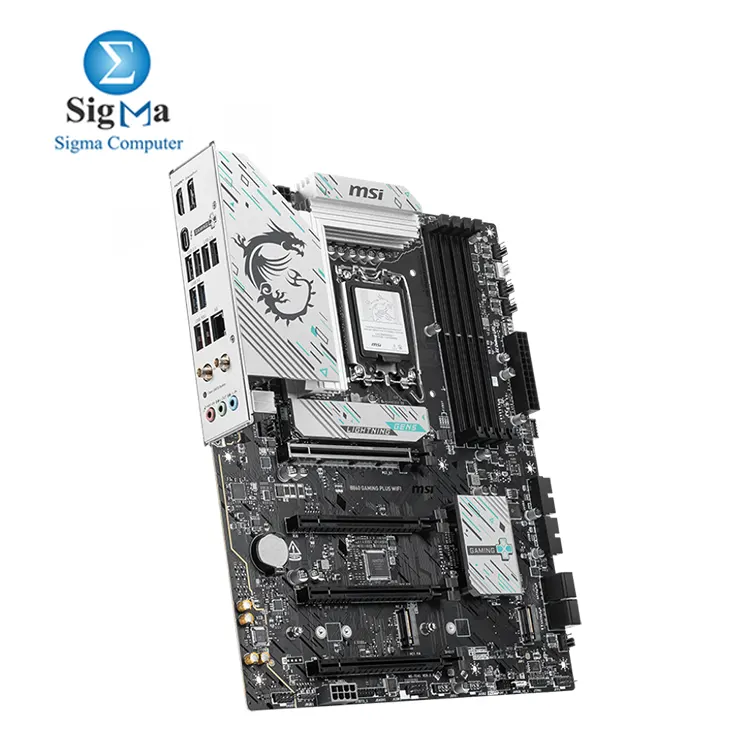

MSI B860 GAMING PLUS WIFI LGA 1851 Intel Core Ultra DDR5 up to 8800 MT s PCIe 5.0 x16 Killer 5G LAN Wi-Fi 7 Thunderbolt 4 3x M.2 Realtek 7.1 Audio ATX.

reviews | Write a review

11199 LE

Availability: In Stock only 2 item left

shipped by (sigma)

Point: 30

Brand : MSI

Model : B860 GAMING PLUS WIFI

Seller : sigma

Viewed : 25 items

MSI B860 GAMING PLUS WIFI – Highlights

Socket: LGA 1851 – Supports Intel® Core™ Ultra

RAM: 4x DDR5 up to 8800+ MT/s (OC), 256GB Max

Storage: 3x M.2 (PCIe 5.0 & 4.0), 4x SATA, RAID support

GPU Slot: PCIe 5.0 x16

Networking: Intel® Killer™ 5G LAN + Wi-Fi 7 + BT 5.4

USB: Thunderbolt™ 4, USB-C 10Gbps, multiple USB 3.2 & 2.0

Audio: Realtek® ALC897 – 7.1 HD

Cooling: 12+1+1+1 Power, Extended Heatsinks, EZ Clips

Form Factor: ATX

OS: Windows 11

Seller note

010074166000074

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

MSI B860 GAMING PLUS WIFI

CPU Support:
Supports Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Memory:
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Supports DDR5 8800+ MT/s (OC), Dual Channel
Max. overclocking frequency:
• 1DPC 1R: up to 8800+ MT/s
• 1DPC 2R: up to 7200+ MT/s
• 2DPC 1R: up to 6400+ MT/s
• 2DPC 2R: up to 5600+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
The DIMM slots only have single-sided latches. Memory compatibility and supported speeds vary based on CPU and memory configuration.
Chipset:
Intel® B860
Ultra Connect:
Thunderbolt™ 4 port
Intel® Killer™ 5G LAN
Intel® Killer™ Wi-Fi 7
Ultra Performance:
12+1+1+1 Duet Rail Power System with P-PAK
8+4-pin CPU power connectors
Core Boost, Memory Boost
6-layer server-grade PCB
Frozr Guard:
Extended Heatsink
MOSFET thermal pads rated for 7W/mK
Additional choke thermal pads
EZ M.2 Shield Frozr II
Graphics Output:
1x HDMI™ 2.1, up to 4K 60Hz*
1x DisplayPort 1.4, up to 4K 60Hz*
1x Type-C DisplayPort (Thunderbolt™ 4), DisplayPort 2.1 with UHBR20, up to 4K@120Hz / 8K@60Hz*
Available only on processors with integrated graphics.
Expansion Slots:
4x PCI-E x16:
• PCI_E1: PCIe 5.0 x16 (CPU)
• PCI_E2: PCIe 4.0 x1 (Chipset)
• PCI_E3: PCIe 4.0 x4 (Chipset)
• PCI_E4: PCIe 4.0 x1 (Chipset)
Storage:
3x M.2 slots:
• M.2_1: PCIe 5.0 x4 (CPU), 2280/2260
• M.2_2: PCIe 4.0 x4 (Chipset), 2280/2260/2242
• M.2_3: PCIe 4.0 x2 (Chipset), 2280/2260
4x SATA 6G
Refer to manual for M.2 SSD heatsink restrictions.
RAID Support:
Supports RAID 0, 1, 5, and 10 for SATA
Audio:
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Thunderbolt:
1x Thunderbolt™ 4 (rear)
Up to 40Gbps (Thunderbolt), 20Gbps (USB4), 10Gbps (USB 3.2)
Power delivery up to 15W (5V/3A)
Daisy-chain up to 3 Thunderbolt 4 or 5 Thunderbolt 3 devices
Supports up to 8K display
USB Ports:
Rear:
• 4x USB 2.0
• 2x USB 5Gbps Type-A
• 2x USB 10Gbps Type-A
• 1x Thunderbolt™ 4 Type-C
Front:
• 4x USB 2.0
• 4x USB 5Gbps Type-A
• 1x USB 10Gbps Type-C
LAN:
Intel® Killer™ E5000 5Gbps
Wireless:
Intel® Killer™ BE1750x Wi-Fi 7
MU-MIMO TX/RX
Supports 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/b/g/n/ac/ax/be
Bluetooth® 5.4*, MLO, 4KQAM
Availability depends on region and Windows version
Internal I/O:
• 1x Thunderbolt5 card connector (JTBT5)
• 1x ATX Power Connector
• 2x CPU Power Connector
• 1x PCIe Power Connector (8-pin)
• 1x CPU Fan
• 1x Combo Fan (Pump/SYS)
• 4x System Fan
• 1x EZ Conn-header (JAF_1)
• 2x Front Panel (JFP)
• 1x Chassis Intrusion (JCI)
• 1x Front Audio (JAUD)
• 1x COM Port (JCOM)
• 1x Tuning Controller (JDASH)
• 2x Addressable RGB V2 (JARGB_V2)
• 1x RGB LED header (JRGB)
• 1x TPM 2.0 header
• 4x USB 2.0 headers
• 4x USB 5Gbps Type-A headers
• 1x USB 10Gbps Type-C header
LED Feature:
4x EZ Debug LED

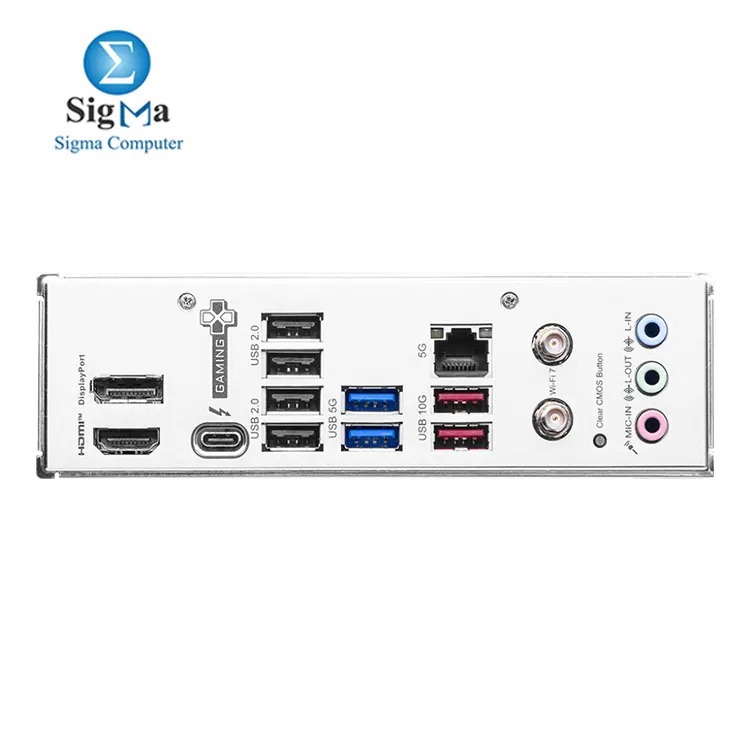

Back Panel Ports:
• DisplayPort
• HDMI™
• 4x USB 2.0
• 2x USB 5Gbps Type-A
• 2x USB 10Gbps Type-A
• Thunderbolt™ 4 Type-C
• 5G LAN
• Wi-Fi / Bluetooth Antenna
• Audio Connectors
• Clear CMOS Button
Operating System:
Windows® 11 64-bit
Form Factor:
ATX (243.84mm x 304.8mm)

Category	Desktop
Subcategory	Motherboard
Brand	MSI
Model	B860 GAMING PLUS WIFI
