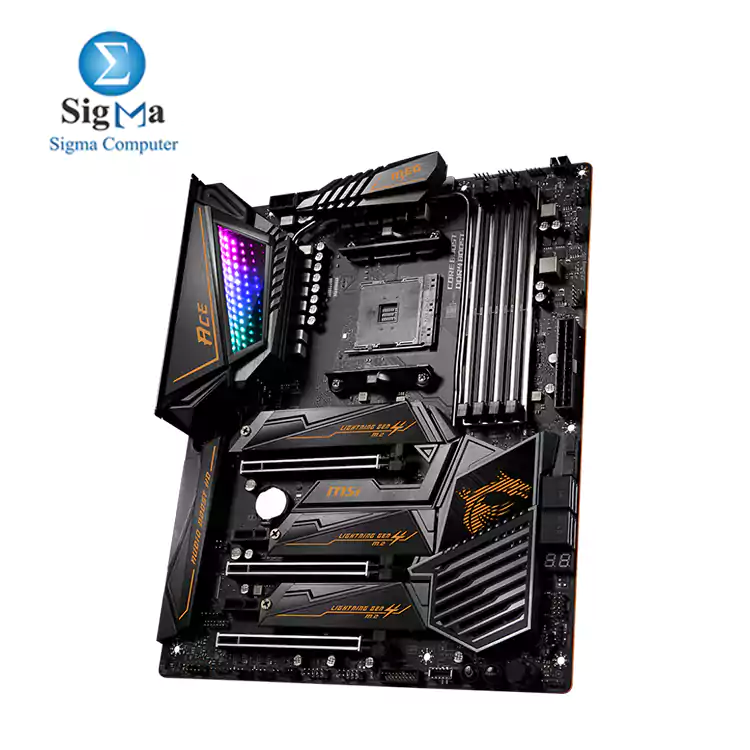

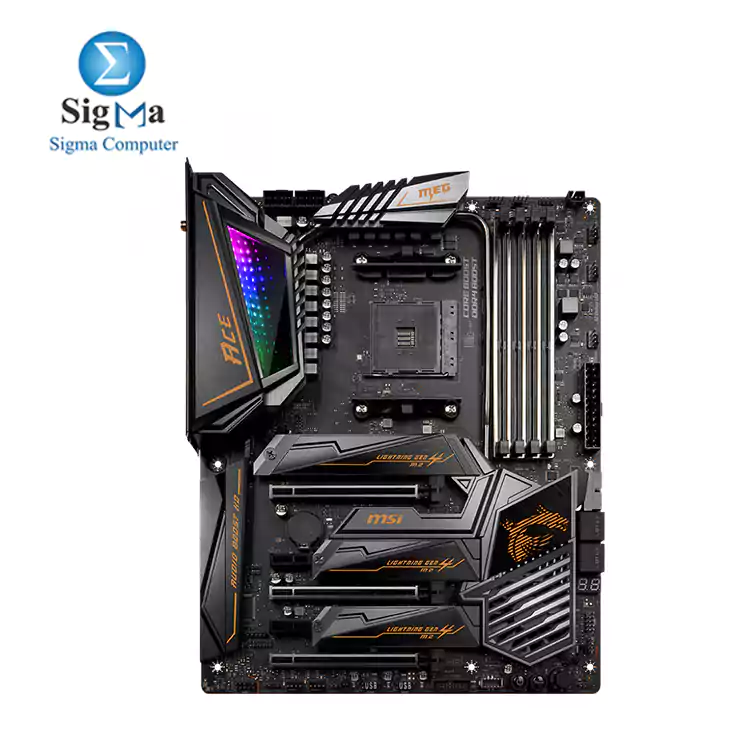

MSI MOTHERBOARD MEG X570 ACE RGB | 8200 EGP

MSI MOTHERBOARD MEG X570 ACE RGB

8200 LE
shipped by (sigma)
Point: 55

Brand : MSI brand

Model : X570

Seller : sigma

Viewed : 3498 items

Supports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
Supports DDR4 Memory, up to 5000+(OC) MHz
Mystic Light Infinity: Customize and set up your own color scheme with MSI Mystic Light, combining exclusive mirror reflection to generate the special endless light effects, the ACE makes your system come alive and infinity.
Lightning Fast Game experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.
Dual LAN with latest Wi-Fi 6 solution: Onboard 2.5G plus Gigabit LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience.
Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
Extended Heat-pipe Design: Enlarge the surface of heat dissipation, connecting from VRM heatsink to chipset heatsink.
Audio Boost HD: Isolated audio with dedicated processor combining ESS audio DAC with amplifier, deliver the breathtaking, game-changing sound to create the most exciting gameplay.
Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

CPU (MAX SUPPORT)                RYZEN 9
SOCKET                           AM4
CHIPSET                          AMD® X570 Chipset
DDR4 MEMORY                      1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 / 4600/ 4733/ 4800/ 5000+ Mhz by JEDEC and A-XMP OC MODE
MEMORY CHANNEL                   Dual
DIMM SLOTS                       4
MAX MEMORY (GB)                  128
PCI-E X16                        3
PCI-E X1                         2
SATAIII                          4
M.2 SLOT                         3
RAID                             0/1/10
TPM (HEADER)                     1
LAN                              1x Intel® WGI211AT Gigabit LAN controller
1x Realtek® RTL8125 2.5 Gbps LAN controller

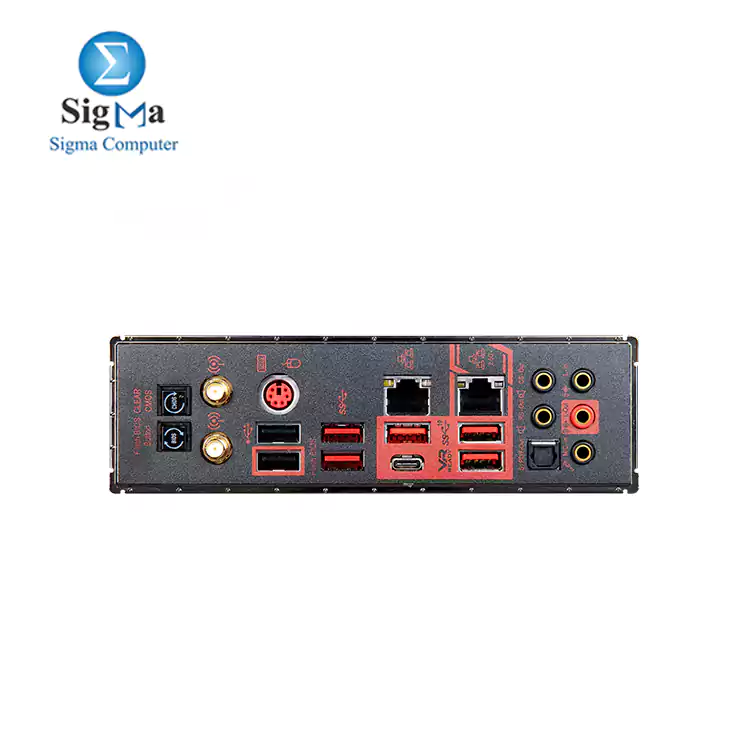

USB 3.2 PORTS (FRONT)            1(Gen2, Type C), 4(Gen1, Type A)
USB 3.2 PORTS (REAR)             1(Gen2, Type C), 3(Gen2, Type A), 2(Gen1, Type A)
USB 2.0 PORTS (FRONT)            4
USB 2.0 PORTS (REAR)             2
AUDIO PORTS (REAR)               5+ Optical S/PDIF (Realtek® ALC1220 Codec)
DIRECTX                          12
FORM FACTOR                      ATX
SLI                              Y
CROSSFIRE                        Y
OPERATING SYSTEM                 Support for Windows® 10 64-bit
CategoryDesktop
SubcategoryMotherboard
BrandMSI
ModelX570
Motherboard TypeAMD
SocketAM4
chipsetX570
