MSI B560M PRO-E LGA 1200 Intel B560 SATA 6Gb/s Micro ATX Intel Motherboard | 3150 EGP

MSI B560M PRO-E LGA 1200 Intel B560 SATA 6Gb s Micro ATX Intel Motherboard

3150 LE
shipped by (sigma)
Point: 50

Brand : MSI brand

Model : B560M

Seller : sigma

Viewed : 22296 items

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

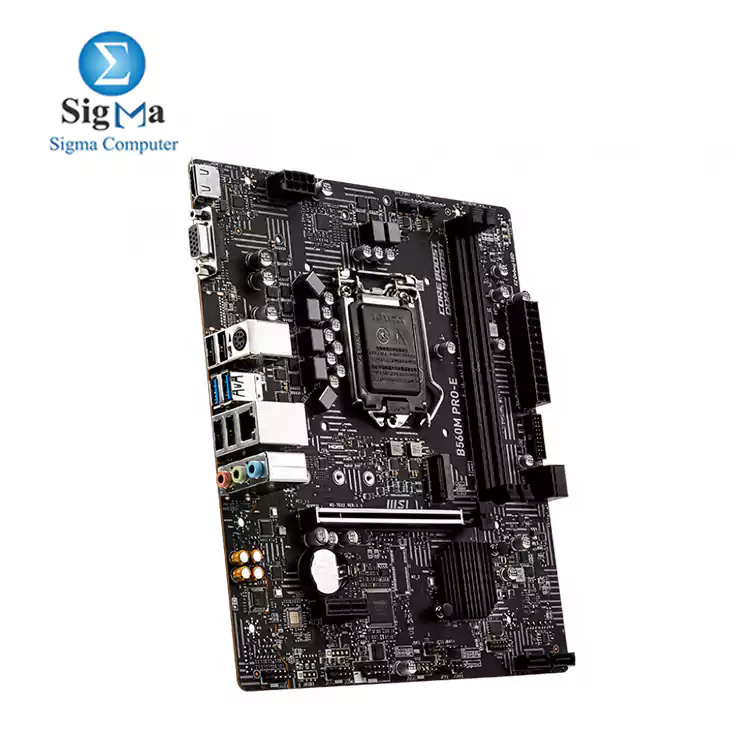

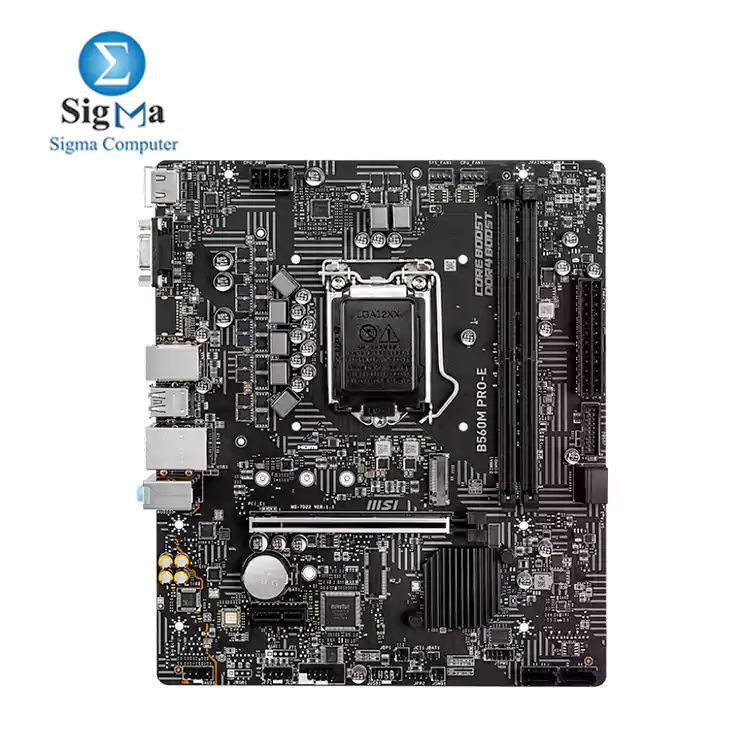

B560M PRO-E
Supports 10th Gen Intel® Core™ , 11th Gen Intel® Core™ , Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 4800(OC) MHz
Core Boost :  With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost :  Advanced technology to deliver pure data signals for the best performance and stability.
Lightning Fast Experience :  PCIe 4.0
Turbo M.2 :  Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Audio Boost :  Reward your ears with studio grade sound quality
Steel Armor :  Protecting VGA cards against bending and EMI for better performance, stability and strength.


CPU (MAX SUPPORT)
SOCKET
CHIPSET
DDR4 MEMORY
MEMORY CHANNEL
DIMM SLOTS
MAX MEMORY (GB)
PCI-E X16
PCI-E GEN
PCI-E X1
SATAIII
M.2 SLOT
TPM (HEADER)
LAN
USB 3.2 PORTS (FRONT)
USB 3.2 PORTS (REAR)
USB 2.0 PORTS (FRONT)
USB 2.0 PORTS (REAR)
SERIAL PORTS(FRONT)
AUDIO PORTS (REAR)
VGA
HDMI
FORM FACTOR
OPERATING SYSTEM
i9
1200
Intel® B560 Chipset
4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz
Dual
2
64
1
Gen4
1
4
1
1
1x Intel® I219V Gigabit LAN controller
2(Gen 1, Type A)
2(Gen 1, Type A)
2
4
1
Realtek® ALC892/ ALC897 Codec
1
1
MATX
Support for Windows® 10 64-bit

CategoryDesktop
SubcategoryMotherboard
BrandMSI
ModelB560M
Motherboard TypeAMD
SocketLGA 1200
chipsetB560M
