GIGABYTE™ Motherboard Intel® B560M H | 2899 EGP

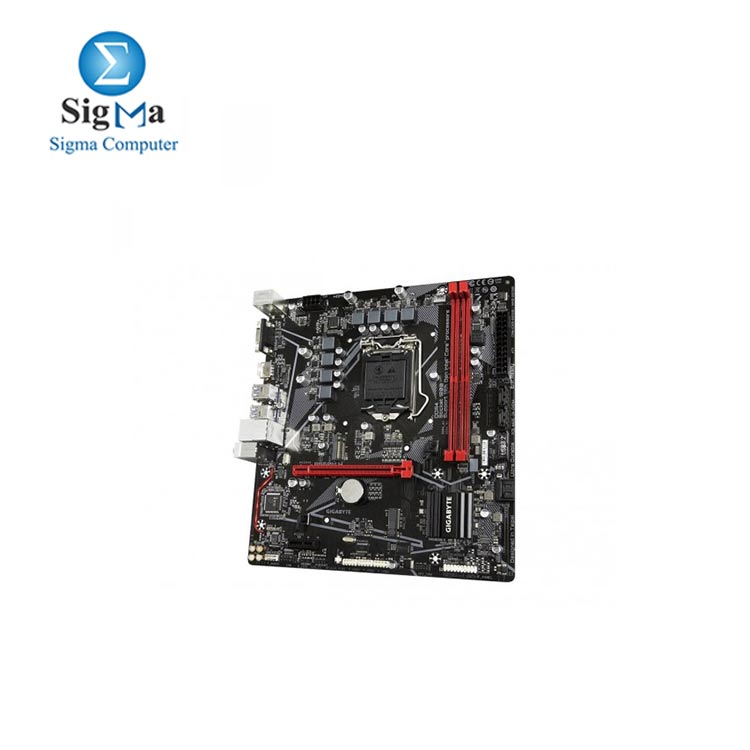

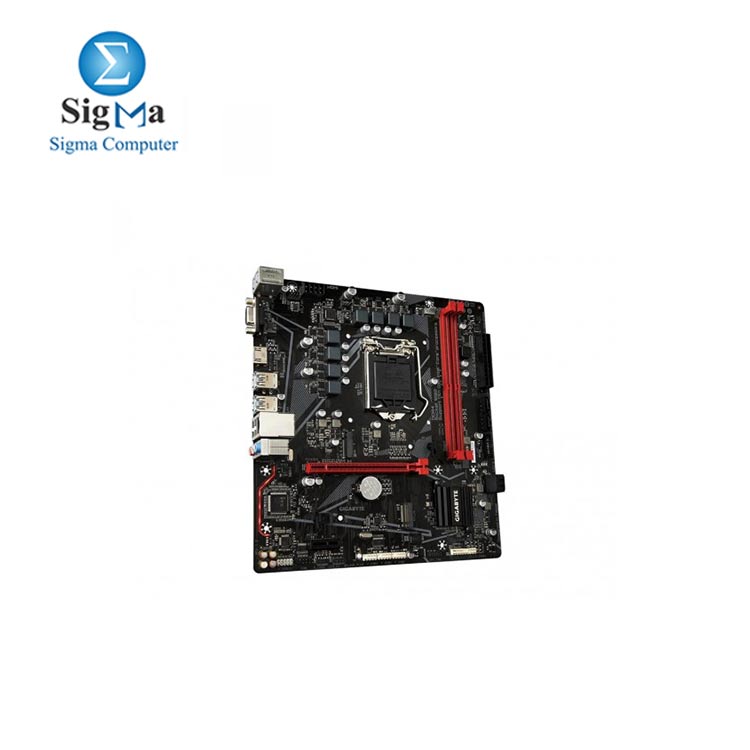

GIGABYTE Motherboard Intel B560M H

2899 LE
shipped by (sigma)
Point: 50

Brand : Gigabyte brand

Model : B560M H

Seller : sigma

Viewed : 6668 items

Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Model
B560M H
Processor
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
L3 cache varies with CPU
LGA1200 package:
Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
VGA
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Integrated Graphics Processor-Intel® HD Graphics support:
USB
Chipset+USB 2.0 Hub:8 x USB 2.0/1.1 ports (2 ports on the back panel, 6 ports available through the internal USB headers)
Chipset:6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Operating System
Support for Windows 10 64-bit
Chipset
Intel® B560 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
10th Generation Intel® Core™ i9/i7 processors:
11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 2666/2400/2133 MHz memory modules
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
Lan
Realtek® GbE LAN chip (1 Gbit/100 Mbit)
Storage
4 x SATA 6Gb/s connectors
CPU:1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
Chipset:1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
Intel® Optane™ Memory Ready
Audio
2/4/5.1/7.1-channe
High Definition Audio
Realtek® Audio CODEC
Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm

CategoryDesktop
SubcategoryMotherboard
BrandGigabyte
ModelB560M H
