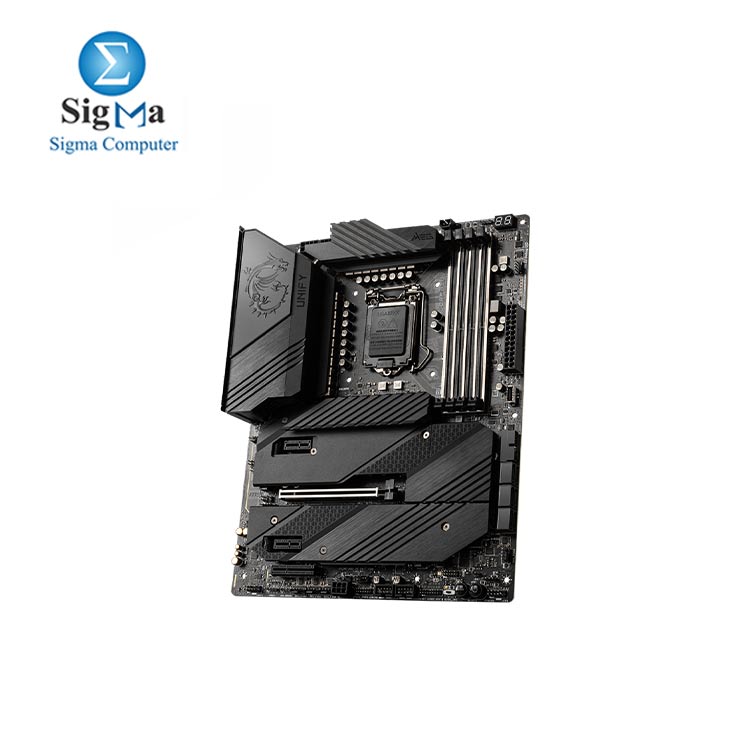

MEG Z590 UNIFY
CPU Support Supports 10th Gen Intel®
Core™ Processors, 11th Gen Intel®
Core™ Processors, Pentium®
Gold and Celeron®
Processors
CPU Socket LGA 1200
Chipset Intel®
Z590 Chipset
Graphics
Interface
1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x4 slot
Support 2-way AMD®
CrossFire™ Technology
Display Interface Support 4K@60Hz as specified in HDMI 2.0b – Requires
Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR4-5600MHz(OC)
Expansion Slots 2x PCIe 3.0 x1 slots
Storage 3x M.2 Gen4 x4 64Gb/s slots, 1x M.2 Gen3 x4 32Gb/s slot,
supports Intel®
Optane™ Technology
6x SATA 6Gb/s ports

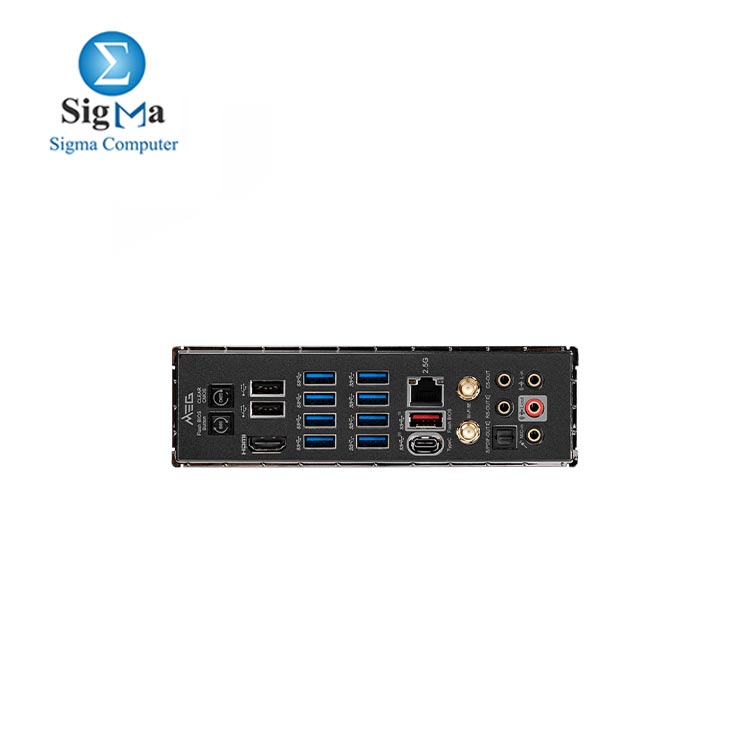

USB ports 1x USB 3.2 Gen 2x2 20Gbps (1 Type-C),
2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C),
10x USB 3.2 Gen 1 5Gbps (10 Type-A),
6x USB 2.0
LAN Intel®
I225-V 2.5G LAN
Wireless /
Bluetooth
Intel®
Wi-Fi 6E AX210, Bluetooth 5.2
Audio 8-Channel (7.1) HD Audio with Audio Boost 5
Extreme Power Design
INTERSIL digital PWM, 16+2+1 phases with 90A SPS, Mirrored
Power Arrangement and dual CPU power connectors to unleash
the maximum performance.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage
performance.
Triple Lightning Gen4 M.2
Maximum onboard triple Gen4 M.2 solution provides multiple
configurations for demanding gamers and power users.
Outstanding Cooling Solution
Aluminum Cover design, VRM Heat-pipe, 7W/mK thermal pads,
M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme
performance with low temp.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online
gaming experience.
Lightning USB 20G
Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Smart Button
Reset Computer, Safe Boot, Turbo Fan and EZ LED control
functions with just one click.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
8 Layer PCB with 2oz Thickened Copper
An Enhanced PCB design provides higher performance and longlasting system stability without any compromise.
Category | Desktop |
Subcategory | Motherboard |
Brand | MSI |
Model | MEG Z590 |
