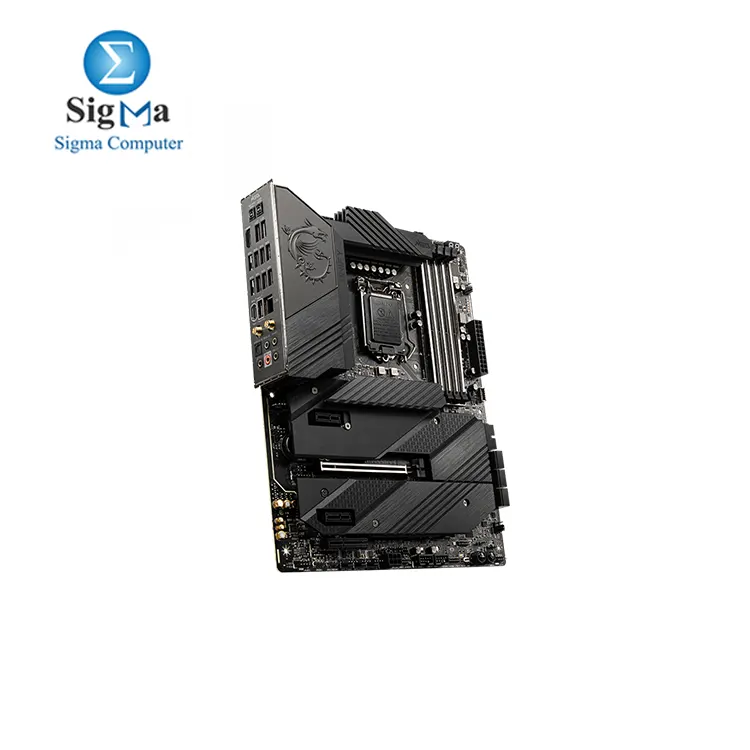

MSI MEG Z590 UNIFY | 6100 EGP

MSI MEG Z590 UNIFY

6100 LE
shipped by (sigma)
Point: 100

Brand : MSI brand

Model : MEG Z590

Seller : sigma

Viewed : 4230 items

Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5600(OC) MHz
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.



SOCKET
CHIPSET
MEMORY CHANNEL
DIMM SLOTS
MAX MEMORY (GB)
PCI-E X16
PCI-E X4
PCI-E X1
SATAIII
M.2 SLOT
RAID
WIFI & BLUETOOTH
USB 3.2 PORTS (FRONT)

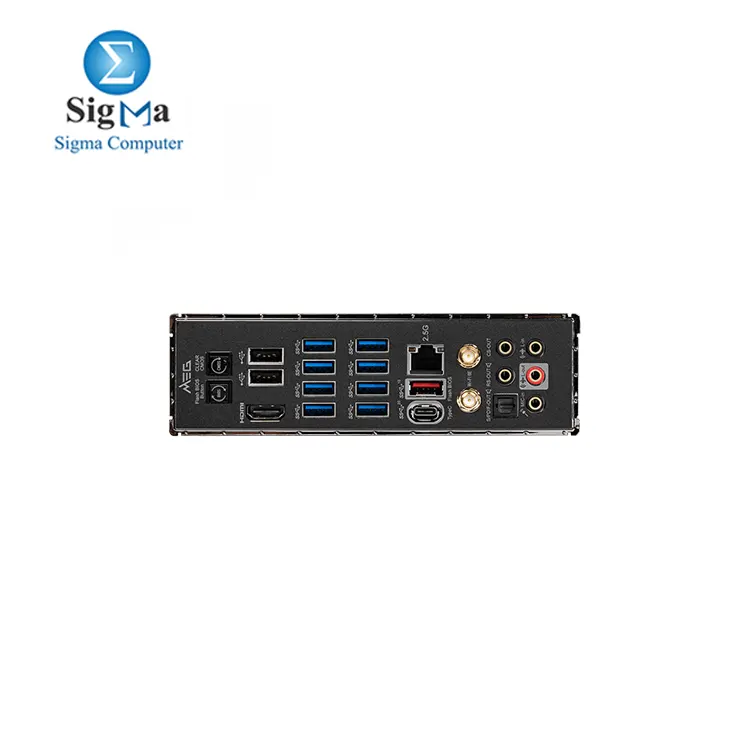

USB 3.2 PORTS (REAR)
USB 2.0 PORTS (FRONT)
USB 2.0 PORTS (REAR)
AUDIO PORTS (REAR)
HDMI
DIRECTX
CROSSFIRE
OPERATING SYSTEM
FORM FACTOR
1200
Intel® Z590 Chipset
Dual
4
128
1
1
2
6
4
0/1/5/10
Intel® Wi-Fi 6E AX210
1(Gen2, Type C), 2(Gen1, Type A)
1(Gen2x2, Type C), 1(Gen2, Type A), 8(Gen1, Type A)
4
2
5+ Optical S/PDIF (Realtek® ALC4080 Codec)
1
12
Y
Support for Windows® 10 64-bit
ATX

CategoryDesktop
SubcategoryMotherboard
BrandMSI
ModelMEG Z590
