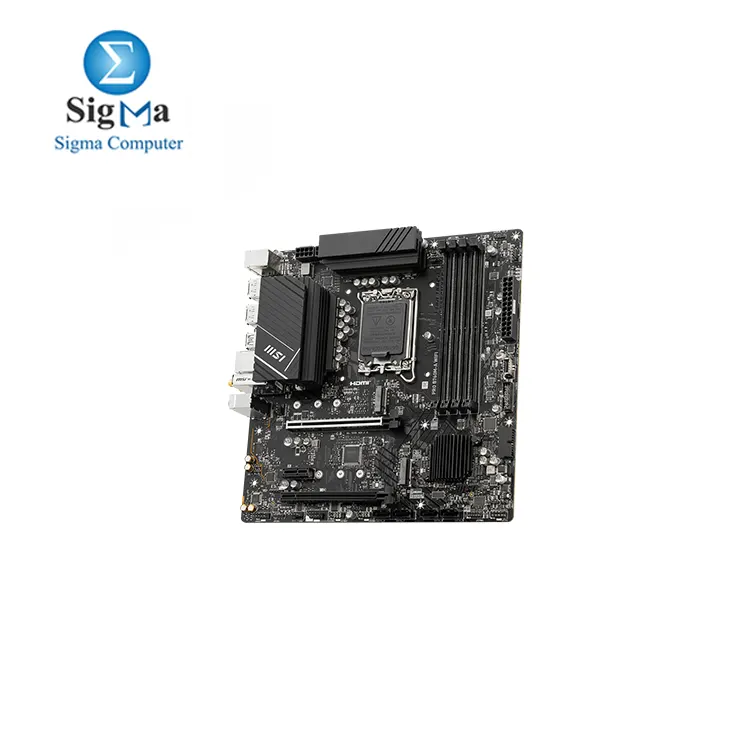

MSI PRO B760M-A WiFi Gaming ProSeries Motherboard, DDR5 Supports Intel Processors, LGA 1700, Micro-ATX, Wi-Fi 6E,- Black | 9499 EGP

MSI PRO B760M-A WiFi Gaming ProSeries Motherboard DDR5 Supports Intel Processors LGA 1700 Micro-ATX Wi-Fi 6E - Black

9499 LE
Availability: In Stock
shipped by (sigma)
Point: 20

Brand : MSI brand

Model : B760M-A WiFi

Seller : sigma

Viewed : 1410 items

  • Chipset: Intel B760
  • CPU Support: Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron® (LGA 1700)
  • Memory: 4x DDR5, up to 256GB, speeds up to 6800+ MHz (OC)
  • Graphics Outputs: 2x HDMI 2.1 (4K 60Hz), 2x DisplayPort 1.4 (4K 60Hz)
  • Expansion Slots: 2x PCI-E x16 (1x Gen 4.0, 1x Gen 3.0), 1x PCI-E x1 (Gen 3.0)
  • Storage: 2x M.2 (PCIe 4.0 x4), 4x SATA 6G, RAID 0/1/5/10
  • USB Ports:
    • Rear: 2x USB 2.0, 2x USB 5Gbps Type-A, 2x USB 10Gbps Type-A
    • Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
  • LAN: Realtek® RTL8125BG 2.5G LAN
  • Wireless: Intel® Wi-Fi 6E, Bluetooth® 5.3
  • Audio: Realtek® ALC897, 7.1-Channel
  • Form Factor: Micro-ATX, 243.84mm x 243.84mm
  • OS Support: Windows® 11/10 64-bit




Chipset & CPU Compatibility:

  • Chipset: Intel B760
  • CPU Support: Compatible with Intel® Core™ 14th, 13th, and 12th Gen Processors, as well as Intel® Pentium® Gold and Celeron® Processors.
  • Socket: LGA 1700

Memory:

  • Type: DDR5
  • Slots: 4x DDR5 DIMM slots
  • Maximum Capacity: Up to 256GB
  • Supported Speeds:
    • 6800+ MHz (OC) for 1DPC 1R
    • 6400+ MHz (OC) for 1DPC 2R
    • 6000+ MHz (OC) for 2DPC 1R
    • 5600+ MHz (OC) for 2DPC 2R
    • Standard JEDEC speeds: 4800 to 5600 MHz
  • Additional Features: Supports Intel® XMP 3.0 OC, Dual-Controller Dual-Channel mode, non-ECC, un-buffered memory

Onboard Graphics:

  • HDMI Ports: 2x HDMI™ 2.1, supports up to 4K 60Hz resolution
  • DisplayPort: 2x DisplayPort 1.4, supports up to 4K 60Hz resolution

Expansion Slots:

  • PCI-E x16 Slots: 2x (1x Gen 4.0, 1x Gen 3.0)
  • PCI-E x1 Slot: 1x Gen 3.0

Storage:

  • M.2 Slots:
    • M.2_1 (from CPU): PCIe 4.0 x4, supports 2280/2260/2242 devices
    • M.2_2 (from Chipset): PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • SATA Ports: 4x SATA 6G
  • RAID: Supports RAID 0, 1, 5, and 10 for SATA devices

USB Ports:

  • Rear:
    • 2x USB 2.0
    • 2x USB 5Gbps Type-A
    • 2x USB 10Gbps Type-A
  • Front:
    • 4x USB 2.0
    • 4x USB 5Gbps Type-A
    • 1x USB 5Gbps Type-C

Networking:

  • LAN: Realtek® RTL8125BG 2.5G LAN
  • Wireless LAN: Intel® Wi-Fi 6E (supports 2.4GHz / 5GHz / 6GHz)
  • Bluetooth: Bluetooth® 5.3

Audio:

  • Codec: Realtek® ALC897
  • Channels: 7.1-Channel High Definition Audio

Internal I/O:

  • Power Connectors: 1x ATX_PWR, 2x CPU_PWR
  • Fan Connectors: 1x CPU Fan, 1x Pump Fan, 2x System Fan
  • Other Connectors:
    • Front Panel
    • Chassis Intrusion
    • Front Audio
    • COM Port
    • 2x Addressable RGB LED (V2)
    • RGB LED
    • TPM (Supports TPM 2.0)
    • 4x USB 2.0 ports
    • 4x USB 5Gbps Type A ports
    • 1x USB 5Gbps Type C port

LED Features:

  • 4x EZ Debug LED

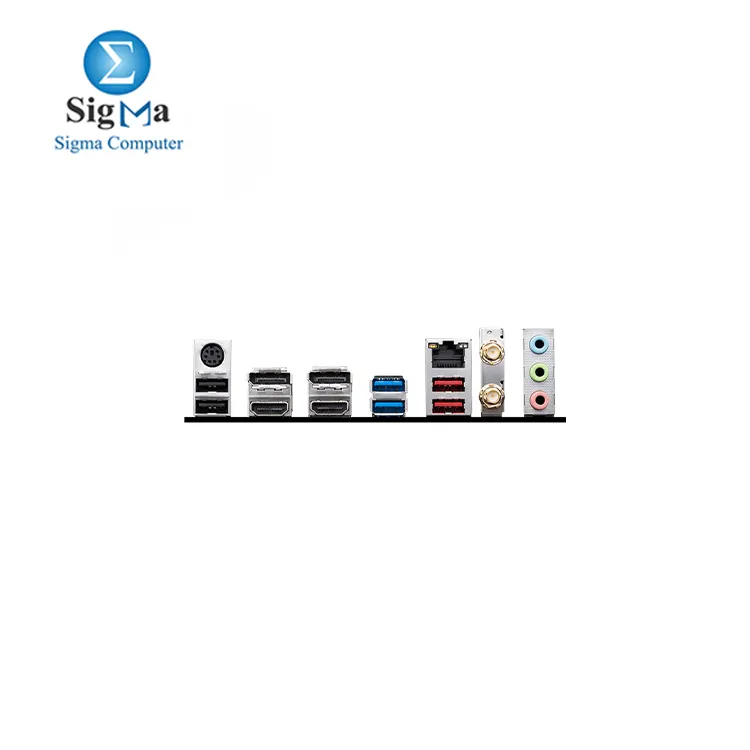

Back Panel Ports:

  • Keyboard/Mouse Port
  • DisplayPort
  • USB 3.2 Gen 1 (5Gbps) Type-A
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Audio Connectors
  • USB 2.0
  • HDMI
  • USB 3.2 Gen 2 (10Gbps) Type-A

Operating System Compatibility:

  • Supported OS: Windows® 11 64-bit, Windows® 10 64-bit

Form Factor:

  • PCB Info: Micro-ATX (mATX), 243.84mm x 243.84mm
