MSI Z790 PROJECT ZERO

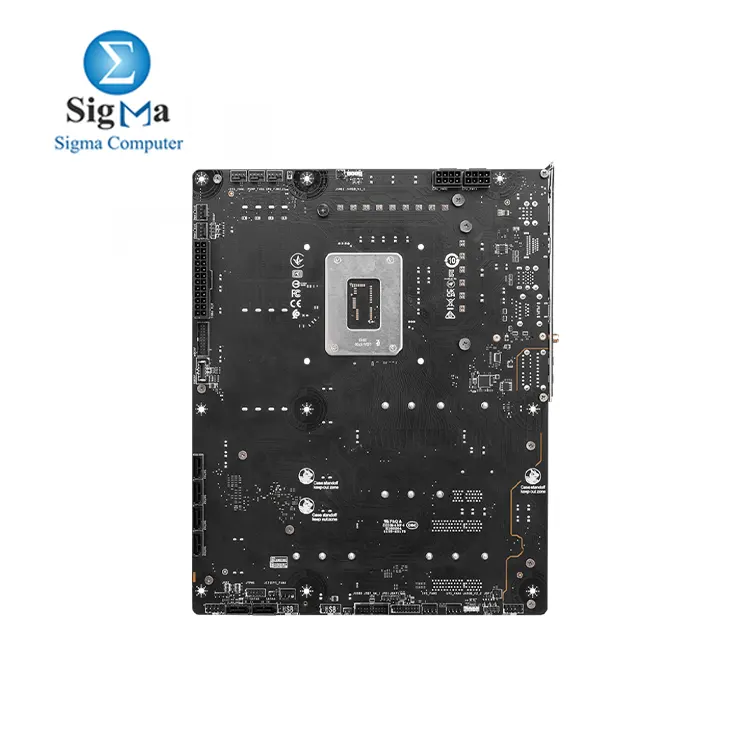

  • Design: Back-connect layout for better cable management and cleaner aesthetics
  • CPU Support: Intel 14th, 13th, and 12th Gen processors
  • Memory: Supports DDR5 RAM
  • Networking: 2.5G LAN + Wi-Fi 7
  • Form Factor: ATX motherboard

This board is ideal for users focused on neat builds and high-performance setups.





Core Specifications

  • Chipset: Intel Z790
  • CPU Support:
    • Intel Core 14th, 13th, 12th Gen processors
    • Intel Pentium Gold & Celeron processors (LGA1700 socket)

Memory

  • Type: 4x DDR5 UDIMM (Dual-Channel)
  • Max Capacity: 256GB
  • Speeds:
    • JEDEC: Up to 5600 MHz
    • OC: Up to 7200+ MHz (1DPC 1R)
  • Features: Non-ECC, Intel® XMP support

Graphics Output

  • 1x HDMI 2.1 (4K @ 60Hz with HDR)
  • 1x DisplayPort 1.4 (4K @ 60Hz)
    (Available only if the CPU includes integrated graphics)

Expansion Slots

  • PCIe Slots:
    • PCI_E1: Gen 5.0 x16 (from CPU)
    • PCI_E3: Gen 4.0 x4 (from Chipset)
    • PCI_E2 & PCI_E4: Gen 3.0 (x1 each)

Audio

  • Codec: Realtek® ALC897
  • Channels: 7.1 High-Performance Audio

Storage

  • M.2 Slots: 4x PCIe 4.0/SATA-compatible
    • M.2_1 (from CPU): PCIe 4.0 x4 (up to 22110 size)
    • M.2_2, M.2_3, M.2_4 (from Chipset): PCIe 4.0 x4 + SATA
  • SATA Ports: 6x SATA 6Gbps
  • RAID: 0, 1, 5, 10

Networking

  • LAN: Intel 2.5G
  • Wireless: Wi-Fi 7 with MU-MIMO (2.4 / 5 / 6GHz)
  • Bluetooth: 5.4

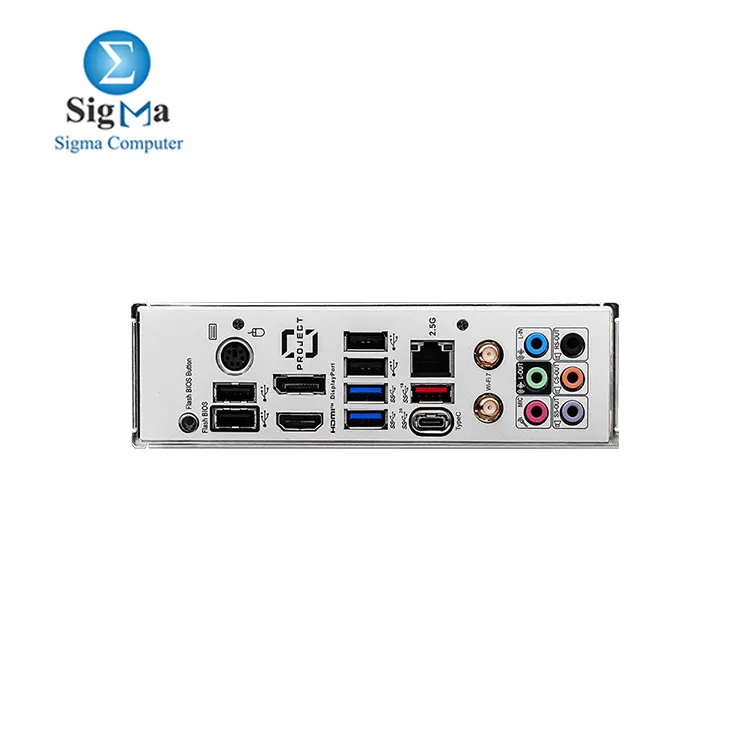

USB Ports

  • Rear:
    • 4x USB 2.0
    • 2x USB 5Gbps Type-A
    • 1x USB 10Gbps Type-A
    • 1x USB 20Gbps Type-C
  • Front:
    • 4x USB 5Gbps Type-A
    • 1x USB 10Gbps Type-C

Internal I/O

  • Fan Headers:
    • 1x CPU Fan
    • 1x Pump Fan
    • 6x System Fans
  • LED:
    • 2x Addressable RGB (JARGB_V2)
    • 2x RGB (JRGB)
  • USB4 Header: For expansion

LED Features

  • EZ Debug LEDs for troubleshooting

The MSI Z790 PROJECT ZERO is a premium ATX board designed for high-performance users who need top-tier connectivity and neat cable management.




CategoryDesktop
SubcategoryMotherboard
BrandMSI
ModelZ790 Project Zero
