MSI MAG Z790 Tomahawk MAX WiFi Gaming Motherboard Supports 12th 13th 14th Gen Intel Processors LGA 1700 DDR5 PCIe 5.0 M.2 SATA 6G 2.5Gbps LAN USB 3.2 Gen2 Wi-Fi 7 Bluetooth 5.4 ATX

MSI MAG Z790 Tomahawk MAX WiFi Gaming Motherboard Supports 12th 13th 14th Gen Intel Processors LGA 1700 DDR5 PCIe 5.0 M.2 SATA 6G 2.5Gbps LAN USB 3.2 Gen2 Wi-Fi 7 Bluetooth 5.4 ATX

reviews | Write a review

15999 LE

Availability: In Stock only 4 item left

shipped by (sigma)

Point: 50

Brand : MSI

Model : MAG Z790 Tomahawk MAX WiFi

Seller : sigma

Viewed : 903 items

Compatibility: Supports 12th, 13th, and 14th Gen Intel processors (LGA 1700 socket).

Memory: DDR5 support for high-speed RAM.

Expansion Slots:

PCIe 5.0 for faster graphics and expansion cards.

Multiple M.2 slots for NVMe SSDs.

Storage Interfaces:

SATA 6G support for traditional hard drives and SSDs.

Networking:

2.5Gbps LAN for high-speed wired networking.

Wi-Fi 7 for advanced wireless connectivity.

Bluetooth 5.4 for connecting peripherals and accessories.

USB Ports: USB 3.2 Gen 2 for fast data transfer.

Form Factor: ATX, suitable for various case sizes.

Seller note

010074166000064

Fast delivery
2-5 Days
Online Support
Chat and Phone
order protection
secured information
promotion gift
special offers!
money back
return over 14 days

Overview

Chipset: Intel Z790
CPU Support:
- Supports Intel® Core™ 12th, 13th, and 14th Gen processors, along with Intel® Pentium® Gold and Celeron® processors.
- Socket Type: LGA 1700

Memory

Slots: 4x DDR5 UDIMM
Maximum Memory Capacity: 256GB
Memory Support:
- Overclocking support for speeds up to 7800+ MHz (OC).
- Supports Intel® XMP 3.0 for easy overclocking.
- Dual-Channel mode with support for non-ECC, un-buffered memory.
Overclocking Frequencies:
- 1DPC 1R: up to 7800+ MHz
- 1DPC 2R: up to 6600+ MHz
- 2DPC 1R: up to 6400+ MHz
- 2DPC 2R: up to 5600+ MHz

Graphics

Onboard Graphics Outputs:
- 1x HDMI™ (HDMI 2.1, max 4K 60Hz)
- 1x DisplayPort (DP 1.4, max 8K 60Hz)
Note: Integrated graphics support depends on the installed CPU.

Expansion Slots

PCI Slots:
- 2x PCI-E x16 slots (1 supports PCIe 5.0, 1 supports PCIe 4.0)
- 1x PCI-E x1 slot (PCIe 3.0)

Audio

Audio Codec: Realtek® ALC4080
Audio Channels: 7.1-Channel USB High Performance Audio
Playback Support: Up to 32-Bit/384 kHz on the front panel

Storage

M.2 Slots: 4x M.2 slots
- M.2_1: PCIe 5.0 x4 (from CPU)
- M.2_2: PCIe 4.0 x4 (from chipset)
- M.2_3: PCIe 4.0 x4/SATA mode (from chipset)
- M.2_4: PCIe 4.0 x4 (from chipset)
SATA Ports: 8x SATA 6G
RAID Support: RAID 0, 1, 5, and 10 for both SATA and M.2 NVMe storage devices.

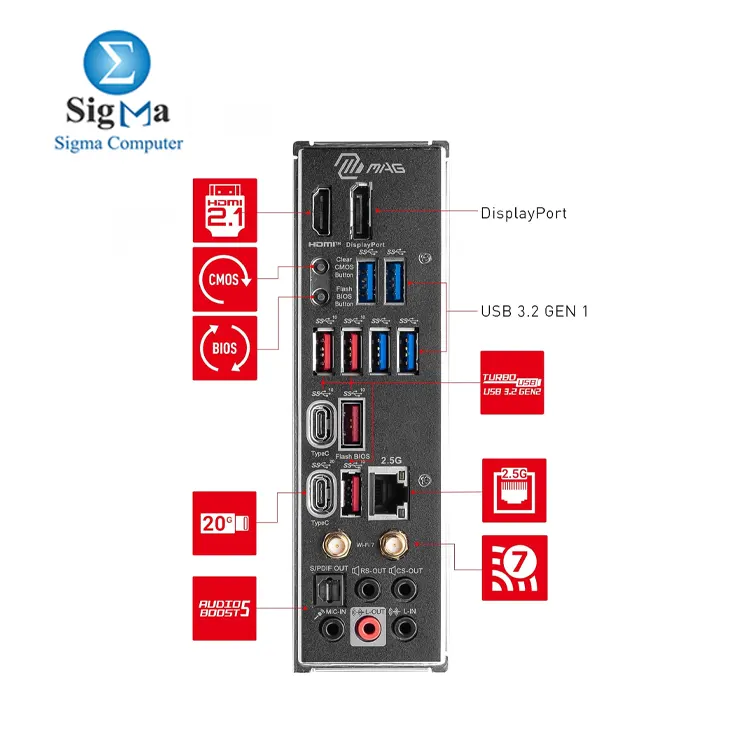

USB Ports

Total USB Ports:
- 4x USB 2.0 (Front)
- 4x USB 5Gbps Type A (Rear)
- 2x USB 5Gbps Type A (Front)
- 4x USB 10Gbps Type A (Rear)
- 1x USB 10Gbps Type C (Rear)
- 1x USB 10Gbps Type C (Front)
- 1x USB 20Gbps Type C (Rear)

Networking

LAN: Intel® 2.5Gbps LAN
Wireless:
- Wi-Fi 7 (pre-installed in M.2 Key-E slot, supports MU-MIMO, 2.4GHz / 5GHz / 6GHz up to 5.8Gbps)
- Supports Bluetooth® 5.4

Internal I/O

Connectors:
- 1x Power Connector (ATX_PWR)
- 2x CPU Power Connectors
- 1x CPU Fan
- 1x Pump Fan
- 6x System Fans
- 1x Front Panel (JFP)
- 1x Front Audio (JAUD)
- 3x Addressable V2 RGB LED connectors
- 1x TPM pin header (supports TPM 2.0)
- 1x USB4 card connector
LED Features: 4x EZ Debug LED

Key Features and Benefits

High Performance: Ideal for gaming and content creation with support for the latest Intel processors and high-speed memory.
Advanced Connectivity: PCIe 5.0 support, multiple M.2 slots, and comprehensive USB options enhance expandability.
Enhanced Audio and Graphics: High-quality audio codec and support for multiple high-resolution displays.
Wi-Fi 7 and Bluetooth 5.4: Future-proof wireless technology for fast connectivity.

Category	Desktop
Subcategory	Motherboard
Brand	MSI
Model	MAG Z790 Tomahawk MAX WiFi
