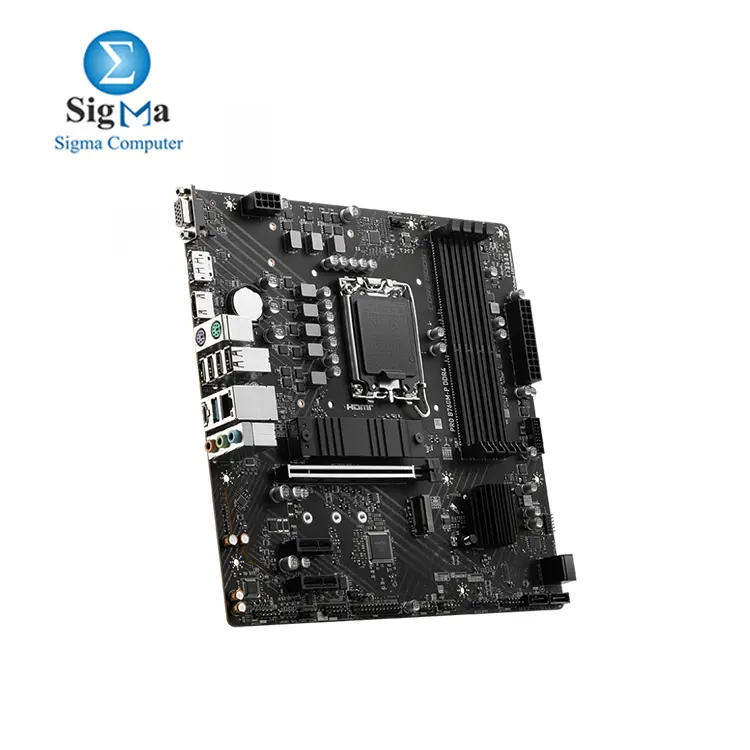

MSI PRO B760M-P DDR4 ProSeries Motherboard (Supports 12th/13th Gen Intel Processors, LGA 1700, DDR4, PCIe 4.0, M.2, Gbps LAN, USB 3.2 Gen2, mATX) | 5249 EGP

MSI PRO B760M-P DDR4 ProSeries Motherboard Supports 12th 13th Gen Intel Processors LGA 1700 DDR4 PCIe 4.0 M.2 Gbps LAN USB 3.2 Gen2 mATX

5249 LE
Availability: In Stock
shipped by (sigma)
Point: 20

Brand : MSI brand

Model : B760M-P DDR4

Seller : sigma

Viewed : 104 items

  • Socket Type: LGA 1700
  • Supported Processors: 12th and 13th Gen Intel Processors
  • Memory Support: DDR4 RAM
  • Memory Slots: Supports multiple memory configurations
  • Expansion Slots:
    • PCIe 4.0 for high-speed graphics cards and other peripherals
    • M.2 slots for NVMe SSDs
  • Networking:
    • Gbps LAN for fast internet connectivity
  • USB Ports:
    • USB 3.2 Gen2 for high-speed data transfer
  • Form Factor: Micro ATX (mATX)




General Specifications

  • Chipset: Intel B760
  • Socket: LGA 1700
  • Supported CPUs:
    • Intel® Core™ 14th/13th/12th Gen Processors
    • Intel® Pentium® Gold and Celeron® Processors

Memory

  • Memory Slots: 4x DDR4
  • Maximum Memory Capacity: 128GB
  • Memory Support:
    • Overclocking frequencies:
      • 1DPC 1R: Up to 4800+ MHz
      • 1DPC 2R: Up to 4600+ MHz
      • 2DPC 1R: Up to 4400+ MHz
      • 2DPC 2R: Up to 4000+ MHz
    • Supports:
      • DDR4 speeds: 4800(OC)/4600(OC)/4400(OC)/4266(OC)/4200(OC)/4000(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(JEDEC)/2933(JEDEC)/2666(JEDEC)/2400(JEDEC)/2133(JEDEC)
      • Dual-Channel mode
      • Non-ECC, un-buffered memory
      • Intel® Extreme Memory Profile (XMP)

Onboard Graphics

  • Video Outputs:
    • 1x HDMI™ (supports HDMI™ 1.4, max resolution 4K @ 30Hz)
    • 1x DisplayPort (supports DP 1.4, max resolution 4K @ 60Hz)
    • 1x VGA (supports max resolutions of 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz)
  • Note: Graphics support depends on the CPU with integrated graphics.

Expansion Slots

  • PCI Slots:
    • 1x PCI-E x16 slot (Gen 4.0, supports x16 from CPU)
    • 2x PCI-E x1 slots (Gen 4.0 from chipset)

Audio

  • Audio Codec: Realtek® ALC897
  • Audio Channels: 7.1-Channel High Definition Audio

Storage

  • M.2 Slots:
    • 2x M.2 slots:
      • M.2_1 (from CPU): Supports PCIe 4.0 x4, compatible with 2280/2260/2242 devices.
      • M.2_2 (from chipset): Supports PCIe 4.0 x4 / SATA mode, compatible with 2280/2260/2242 devices.
  • SATA Ports: 4x SATA 6G (SATA5 is unavailable when installing M.2 SATA SSD in M2_2 slot)
  • RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 for SATA storage devices

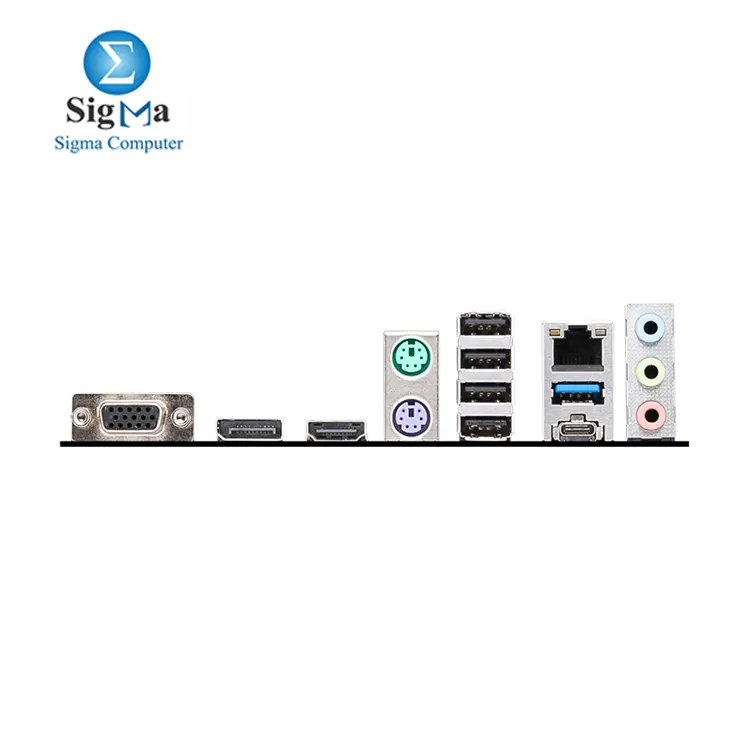

USB Ports

  • Rear:
    • 4x USB 2.0
    • 1x USB 5Gbps Type A
    • 1x USB 10Gbps Type C
  • Front:
    • 4x USB 2.0
    • 2x USB 5Gbps Type A

Networking

  • LAN: Realtek® RTL8111H Gigabit LAN

Internal I/O

  • Connectors:
    • 1x Power Connector (ATX_PWR)
    • 1x Power Connector (CPU_PWR)
    • 1x CPU Fan
    • 2x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 1x Printer Port (JLPT)
    • 1x COM Port (JCOM)
    • 1x RGB LED connector (JRGB)
    • 1x TPM pin header (supports TPM 2.0)
    • 4x USB 2.0 ports
    • 2x USB 5Gbps Type A ports

LED Features

  • Debugging: 4x EZ Debug LED
