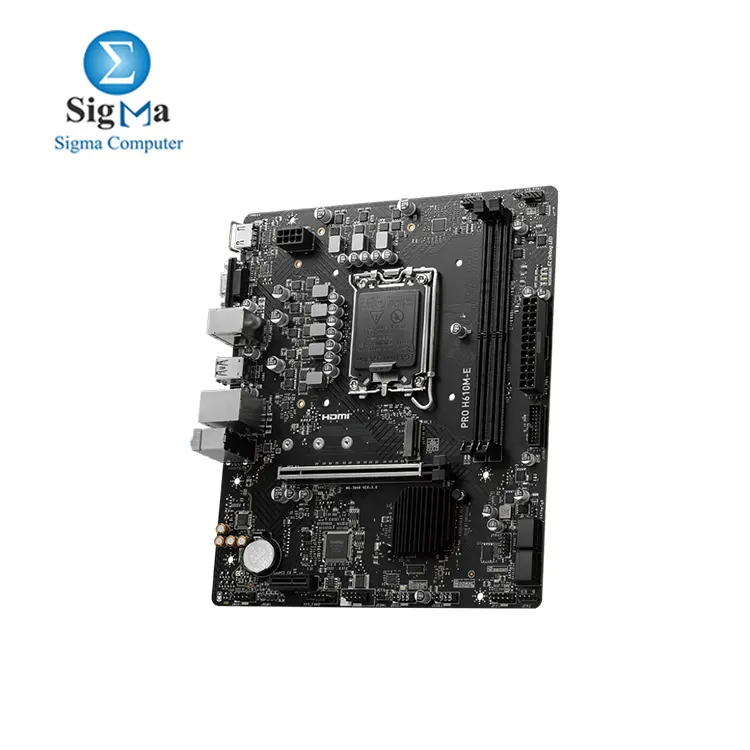

MSI PRO H610M-E Motherboard, Micro-ATX - Supports 14th/13th/12th Gen Intel Core Processors, LGA 1700 - DDR5 Memory Boost 5600MHz/MAX, PCIe 4.0 x16 Slot, M.2 Gen3 Slot | 4299 EGP

MSI PRO H610M-E Motherboard Micro-ATX - Supports 14th 13th 12th Gen Intel Core Processors LGA 1700 - DDR5 Memory Boost 5600MHz MAX PCIe 4.0 x16 Slot M.2 Gen3 Slot

4299 LE
Availability: In Stock
shipped by (sigma)
Point: 10

Brand : MSI brand

Model : H610M-E

Seller : sigma

Viewed : 1568 items

Intel H610 Motherboard

  • Chipset: Intel H610
  • CPU Support: Intel Core 14th/13th/12th Gen (LGA 1700)
  • Memory: 2x DDR5, up to 96GB, 5600 MHz

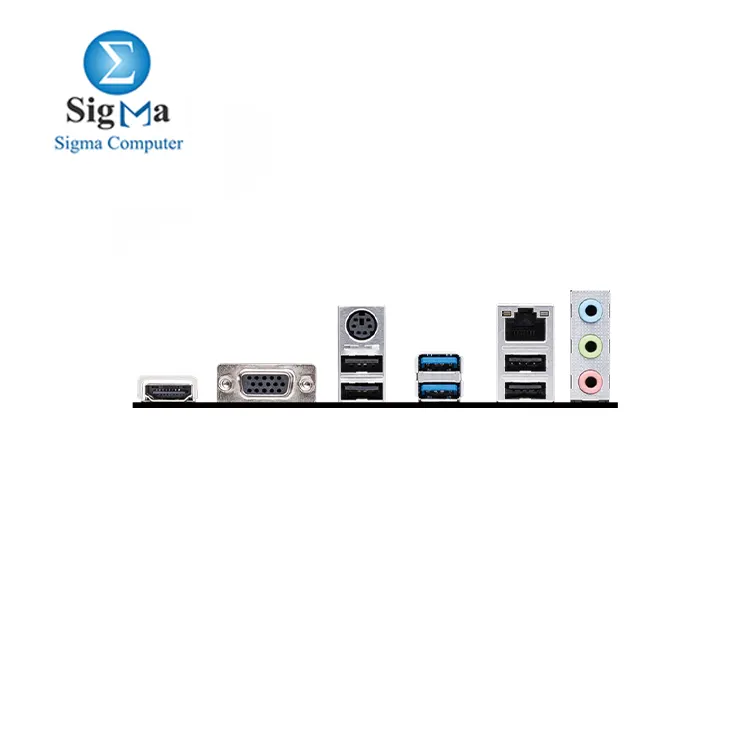

  • Graphics: 1x HDMI (4K 30Hz), 1x VGA
  • Slots: 1x PCI-E x16, 1x PCI-E x1
  • Audio: 7.1-Channel HD Audio
  • Storage: 1x M.2, 4x SATA 6Gbps
  • USB: 8 total (4 USB 2.0, 4 USB 5Gbps)
  • LAN: Gigabit
  • Form Factor: mATX (200mm x 236.16mm)
  • OS Support: Windows 10/11 (64-bit)




Intel H610 Motherboard Specifications

  • Chipset: Intel H610
  • CPU Support: Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron (LGA 1700)
  • Memory:
    • 2x DDR5 slots, up to 96GB
    • DDR5 5600 MHz support (JEDEC & POR)
    • Intel XMP 3.0 OC support
    • Dual-channel mode, non-ECC un-buffered
  • Onboard Graphics:
    • 1x HDMI™ (supports 4K 30Hz, HDR)
    • 1x VGA (supports up to 2048x1536 @ 50Hz)
  • Slots:
    • 1x PCI-E x16 (PCIe 4.0)
    • 1x PCI-E x1 (PCIe 3.0)
  • Audio: Realtek ALC897 Codec, 7.1-Channel HD Audio
  • Storage:
    • 1x M.2 (PCIe 3.0 x4/SATA)
    • 4x SATA 6Gbps (SATA5 unavailable with M.2 SATA SSD)
  • USB Ports:
    • 4x USB 2.0 (Rear & Front)
    • 2x USB 5Gbps Type A (Rear & Front)
  • LAN: Realtek RTL8111H Gigabit LAN
  • Internal I/O:
    • Power connectors, CPU fan, system fans, front panel, audio, COM port, RGB LED, TPM header, and USB ports
  • LED Feature: 4x EZ Debug LED
  • Operating System Support: Windows 10/11 (64-bit)
  • Form Factor: mATX (200mm x 236.16mm)



CategoryDesktop
SubcategoryMotherboard
BrandMSI
ModelH610M-E
