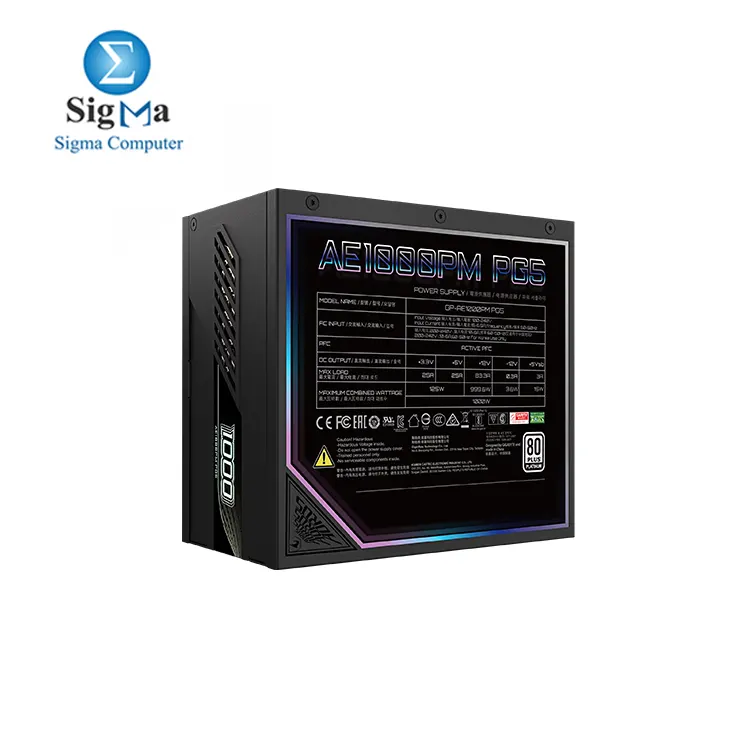

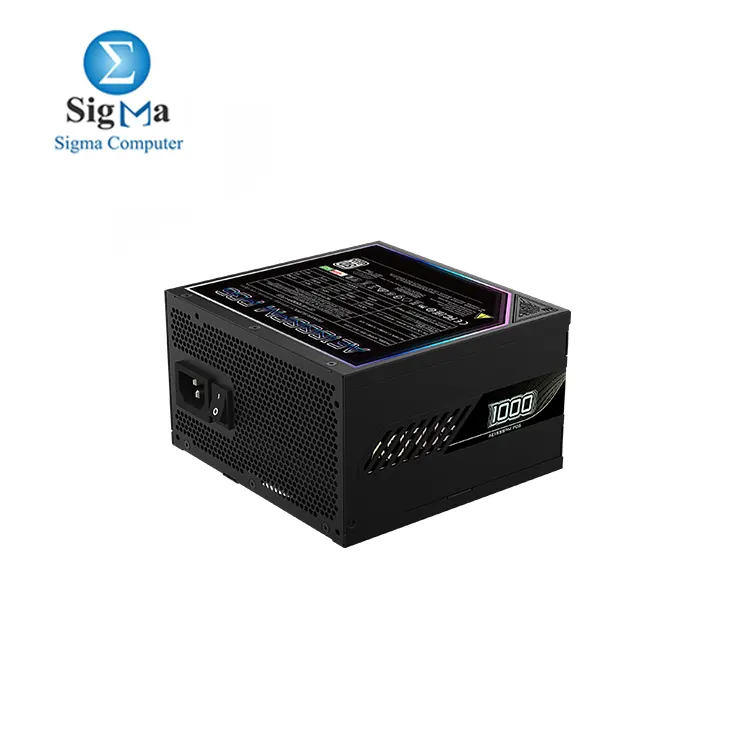

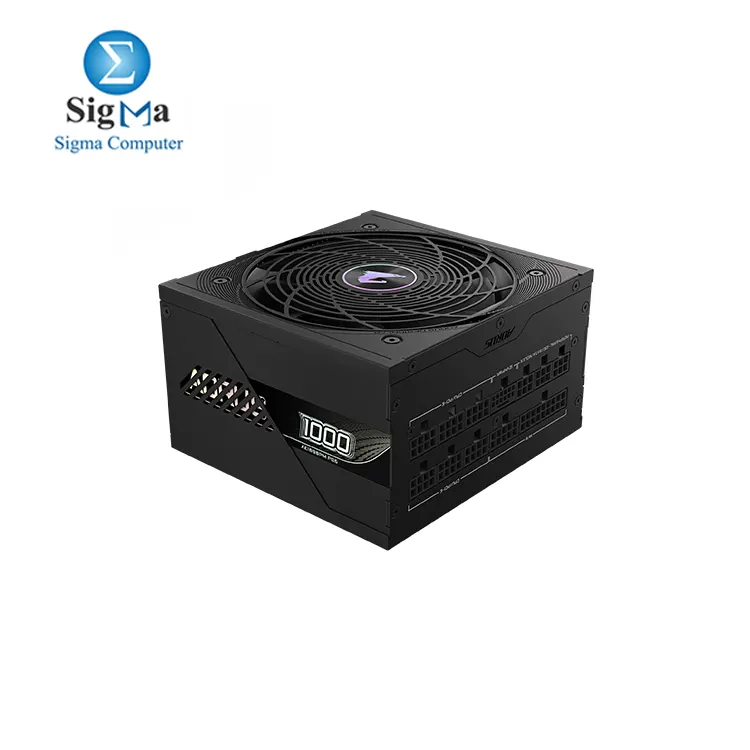

GIGABAYT AORUS ELITE P1000W 80+ Platinum Modular PCIe 5.0 POWER SUPPLY | 8699 EGP

GIGABAYT AORUS ELITE P1000W 80 Platinum Modular PCIe 5.0 POWER SUPPLY

8699 LE
Availability: In Stock only 3 item left
shipped by (sigma)
Point: 20

Brand : Gigabyte brand

Seller : sigma

Viewed : 383 items

Specifications:

  • Wattage: 1000W – sufficient for high-end GPUs and CPUs.
  • Efficiency: 80+ Platinum – delivers up to 92% efficiency under load, reducing heat and energy consumption.
  • Design: Fully modular – enables clean and customized cable management.
  • PCIe 5.0 Ready: Supports the latest GPUs with a 16-pin connector delivering up to 600W.
  • Cooling: Smart hydraulic bearing fan for quiet and effective cooling.
  • Build Quality: Premium Japanese capacitors for enhanced reliability and durability.
  • Warranty: Typically comes with an extended warranty period (5–10 years depending on the region).




Key Specifications:

  • Model: GP-AE1000PM PG5
  • Form Factor: Intel ATX 12V v3.0 (compatible with ATX 3.1)
  • Power Output: 1000W
  • Efficiency: 80+ Platinum (92% at typical load)
  • Input Voltage: 100–240V (full range), with Active PFC (>0.9 typical)
  • Input Current: 15–6.5A
  • Input Frequency: 50–60 Hz

Design and Build:

  • Dimensions: Compact at 150 x 140 x 86mm

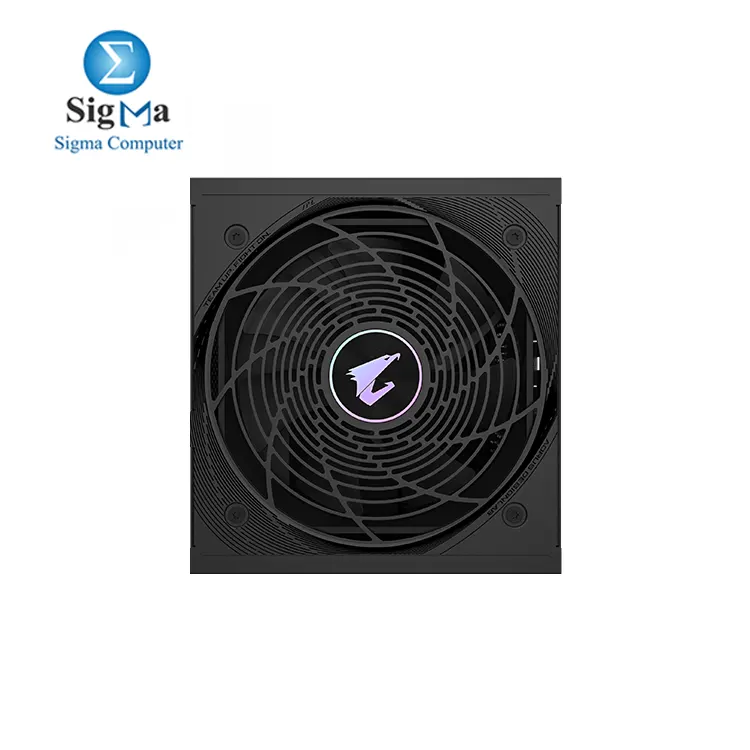

  • Fan Type: 120mm Fluid Dynamic Bearing (FDB) fan for quiet and reliable cooling
  • Cable Type: Flat, all-black cables for neat cable management

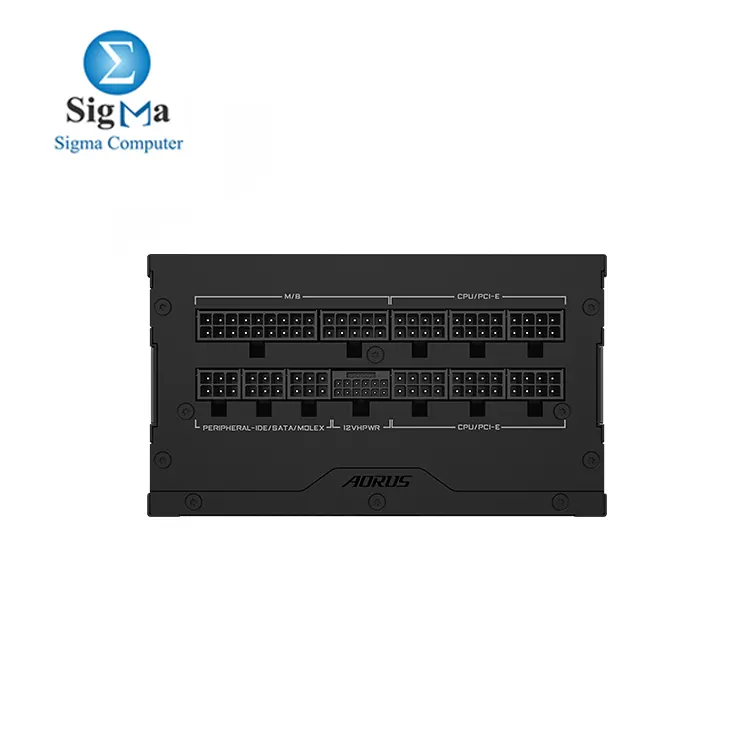

Connectivity:

  • ATX/MB (20+4 Pin): 1 connector (650mm)
  • CPU/EPS (4+4 Pin): 2 connectors (700mm each)
  • PCI-e (16 Pin): 1 connector (700mm, PCIe 5.0 ready for GPUs like RTX 4090)
  • PCI-e (6+2 Pin): 6 connectors (varied lengths)
  • SATA: 8 connectors
  • Peripheral (4 Pin): 4 connectors

Performance and Reliability:

  • MTBF: Over 100,000 hours
  • Hold-Up Time: >16ms
  • Power Good Signal: 100–150ms
  • Protections: Comprehensive safeguards, including OVP, OPP, SCP, UVP, OCP, and OTP



CategoryDesktop
SubcategoryPower Supply
BrandGigabyte
ModelGP-AE1000PM PG5
