MSI PRO Z890-P WiFi ProSeries Motherboard (Supports Core Ultra Series 2 Intel Processors, LGA 1851, DDR5, PCIe 5.0, M.2, SATA, 5Gbps LAN, USB Type-C, Wi-Fi 7, Bluetooth 5.4, Thunderbolt 4, ATX) | 15999 EGP

MSI PRO Z890-P WiFi ProSeries Motherboard Supports Core Ultra Series 2 Intel Processors LGA 1851 DDR5 PCIe 5.0 M.2 SATA 5Gbps LAN USB Type-C Wi-Fi 7 Bluetooth 5.4 Thunderbolt 4 ATX

15999 LE
Availability: In Stock only 2 item left
shipped by (sigma)
Point: 30

Brand : MSI brand

Model : Z890-P

Seller : sigma

Viewed : 438 items

MSI PRO Z890-P WIFI motherboard is designed with a sleek and minimalistic look, featuring a silver color scheme that blends seamlessly with both white and black PC setups. It is packed with premium MSI features such as:

  • Wi-Fi 7 support with EZ Antenna for faster wireless connections.
  • 5G LAN for ultra-fast wired networking.
  • Thunderbolt 4 connectivity for high-speed data transfer and peripheral compatibility.
  • PCIe 5.0 M.2 slots with EZ M.2 Shield Frozr II for improved thermal performance and faster storage access.
  • Supplemental PCIe Power to ensure stable performance under heavy loads.


Chipset and CPU Support

  • Chipset: Intel® Z890
  • CPU: Supports Intel® Core™ Ultra Processors (Series 2), LGA 1851 socket

Memory

  • Slots: 4x DDR5 UDIMM
  • Maximum Capacity: 256GB
  • Memory Support:
    • 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
    • Overclocking support up to:
      • 1DPC 1R: 9200+ MT/s
      • 1DPC 2R: 7200+ MT/s
      • 2DPC 1R: 4800+ MT/s
      • 2DPC 2R: 4800+ MT/s
  • Intel® XMP 3.0 support
  • Dual-Channel Mode (Dual-Controller)
  • Supports Non-ECC, Un-buffered memory, CUDIMM

Graphics

  • 1x HDMI™: Supports HDMI™ 2.1, 4K@60Hz
  • 1x DisplayPort: Supports DisplayPort 1.4, 4K@60Hz
  • 1x Type-C DisplayPort: Thunderbolt™ 4, 4K@120Hz / 8K@60Hz (Only with integrated graphics)

Expansion Slots

  • 3x PCI-E x16 slots
  • 1x PCI-E x1 slot
    • PCI-E1 (Gen 5): Up to x16 (From CPU)
    • PCI-E2 (Gen 4): Up to x1 (From Chipset)
    • PCI-E3 (Gen 4): Up to x4 (From Chipset)
    • PCI-E4 (Gen 4): Up to x4 (From Chipset)

Audio

  • Realtek® ALC897 Codec with 7.1-Channel High Definition Audio

Storage

  • 4x M.2 Slots:
    • M.2_1 (CPU): PCIe 5.0 x4, supports 2280/2260
    • M.2_2 (CPU): PCIe 4.0 x4, supports 22110/2280/2260
    • M.2_3 (Chipset): PCIe 4.0 x4, supports 2280/2260/2242
    • M.2_4 (Chipset): PCIe 4.0 x4 / SATA, supports 2280/2260/2242
  • 4x SATA 6G ports

RAID

  • Supports RAID 0, RAID 1, RAID 5, and RAID 10 for both SATA and M.2 NVMe storage devices

Thunderbolt

  • 1x Thunderbolt 4 Port (Rear):
    • Transfer rate up to 40Gbps for Thunderbolt devices
    • Up to 20Gbps for USB4 devices
    • Supports 8K display

USB Ports

  • 4x USB 2.0 (Rear), 4x USB 2.0 (Front)
  • 2x USB 5Gbps Type-A (Rear), 4x USB 5Gbps Type-A (Front)
  • 1x USB 10Gbps Type-A (Rear), 1x USB 10Gbps Type-C (Rear)
  • 1x USB 20Gbps Type-C (Front)

LAN & Wireless

  • LAN: Realtek® 8126 5Gbps LAN
  • Wireless:
    • Intel® Wi-Fi 7 with speeds up to 5.8Gbps (2.4GHz / 5GHz / 6GHz)
    • Bluetooth® 5.4 support (with Windows 11 version 24H2)

Internal I/O

  • 1x Thunderbolt 5 card connector, 2x CPU_PWR, 1x PCI-E_PWR, 5x System Fan, 3x Addressable RGB connectors
  • TPM 2.0, 1x Front Audio, 4x USB 2.0, 1x Tuning Controller

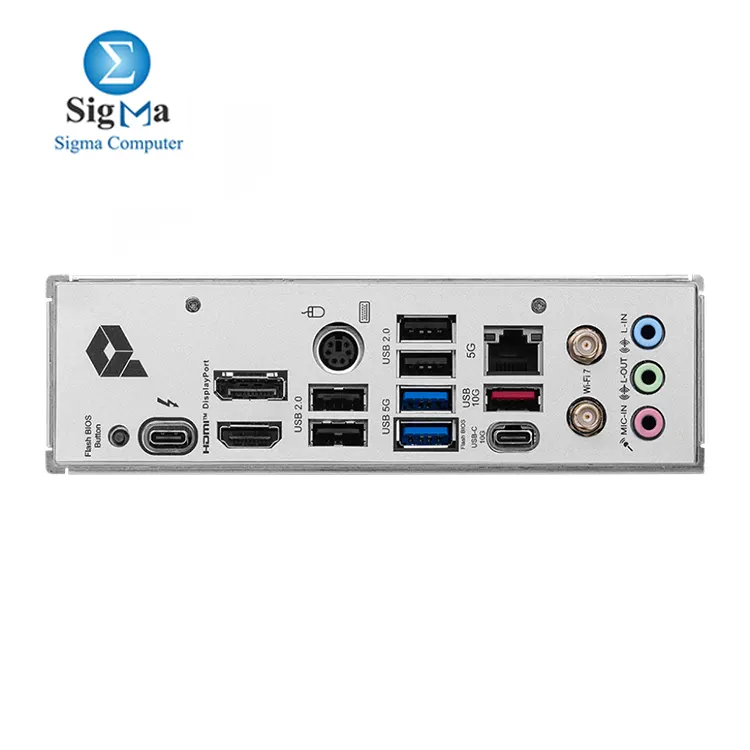

Back Panel Ports

  • DisplayPort, USB 5Gbps Type-A, Thunderbolt 4 (40Gbps Type-C), 5G LAN, Wi-Fi/Bluetooth, Audio connectors, Flash BIOS Button, HDMI

Operating System

  • Supports Windows® 11 64-bit

Dimensions

  • Form Factor: ATX (243.84mm x 304.8mm)
CategoryDesktop
SubcategoryMotherboard
BrandMSI
Model Z890-P
