MSI PRO Z890-A WiFi ProSeries Motherboard (Supports Core Ultra Series 2 Intel Processors, LGA 1851, DDR5, PCIe 5.0, M.2, SATA, 5Gbps LAN, USB Type-C, Wi-Fi 7, Bluetooth 5.4, Thunderbolt 4, ATX) | 16500 EGP

MSI PRO Z890-A WiFi ProSeries Motherboard Supports Core Ultra Series 2 Intel Processors LGA 1851 DDR5 PCIe 5.0 M.2 SATA 5Gbps LAN USB Type-C Wi-Fi 7 Bluetooth 5.4 Thunderbolt 4 ATX

16500 LE
Availability: In Stock only 1 item left
shipped by (sigma)
Point: 35

Brand : MSI brand

Model : Z890-A

Seller : sigma

Viewed : 2080 items

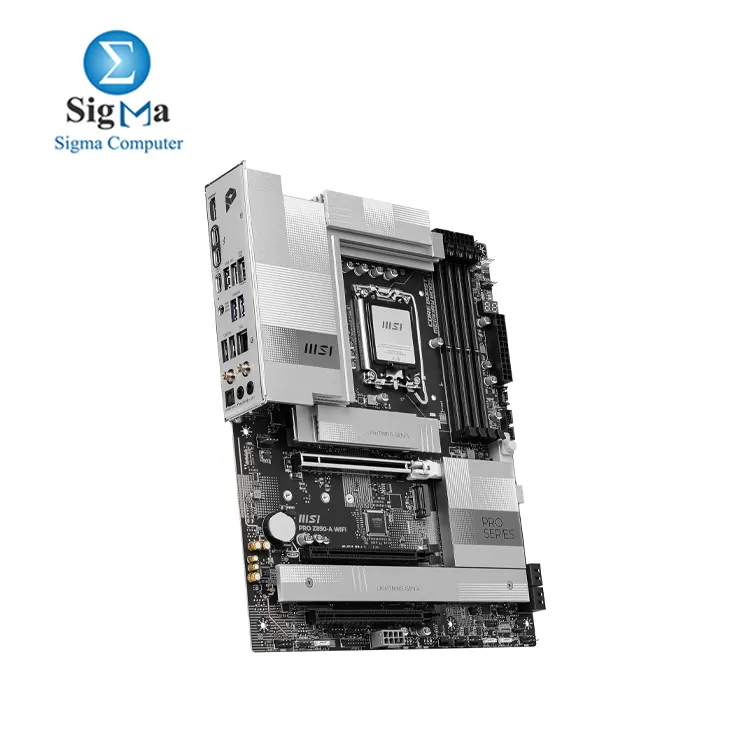

MSI PRO Z890-A WIFI is a motherboard designed to deliver robust performance with its sleek, silver color scheme that complements both white and black PC builds. It supports next-gen technology with features such as:

  • Wi-Fi 7 with EZ Antenna for enhanced wireless connectivity.
  • 5G LAN for ultra-fast network speeds.
  • Thunderbolt 4 for high-speed data transfer and versatile connectivity.
  • PCIe 5.0 M.2 with EZ M.2 Shield Frozr II to ensure optimal SSD performance and cooling.
  • Supplemental PCIe Power for stable power delivery to high-performance components.





Chipset & CPU Support

  • Chipset: Intel® Z890
  • CPU Support: Intel® Core™ Ultra Processors (Series 2), LGA 1851

Memory Support

  • Slots: 4x DDR5 UDIMM, max 256GB capacity
  • Memory Speeds:
    • 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
    • Overclocking: Up to 9200+ MT/s (1DPC 1R), 7200+ MT/s (1DPC 2R), 4800+ MT/s (2DPC)
  • Supports Intel® XMP 3.0 and Dual-Channel mode
  • Non-ECC, Un-buffered memory

Onboard Graphics

  • Ports:
    • 1x HDMI™ 2.1 (4K 120Hz)
    • 2x Type-C DisplayPort (Thunderbolt™ 4 with DisplayPort 2.1, supports up to 4K@120Hz / 8K@60Hz)
    • Available only with CPUs that have integrated graphics

Expansion Slots

  • PCI-E Slots:
    • 3x PCIe x16 slots
    • PCI_E1 Gen PCIe 5.0 (x16)
    • PCI_E2 and PCI_E3 Gen PCIe 4.0 (x4)

Audio

  • Chipset: Realtek® ALC1220P, 7.1-Channel High Definition Audio
  • Supports S/PDIF output

Storage

  • M.2 Slots: 4x M.2 (2280/2260/2242)
    • M.2_1: PCIe 5.0 x4 (From CPU)
    • M.2_2: PCIe 4.0 x4 (From CPU)
    • M.2_3 & M.2_4: PCIe 4.0 x4 / SATA (From Chipset)
  • SATA Ports: 4x SATA 6Gbps

RAID Support

  • RAID Levels: 0, 1, 5, 10 for both SATA and M.2 NVMe storage

Thunderbolt 4 & USB Ports

  • Thunderbolt 4 Ports: 2x rear (40Gbps transfer rate)
    • Supports daisy-chaining up to 3 Thunderbolt 4 or 5 Thunderbolt 3 devices
    • Supports up to 8K display
  • USB Ports:
    • 4x USB 2.0 (Front)
    • 4x USB 5Gbps Type-A (Rear)
    • 2x USB 5Gbps Type-A (Front)
    • 3x USB 10Gbps Type-A (Rear)
    • 1x USB 10Gbps Type-C (Rear)
    • 1x USB 20Gbps Type-C (Front, supports USB PD 27W fast charging)

Networking & Wireless

  • LAN: Realtek® 8126 5Gbps LAN
  • Wi-Fi & Bluetooth:
    • Wi-Fi: Intel® Wi-Fi 7 (up to 5.8Gbps, MU-MIMO, 2.4GHz / 5GHz / 6GHz bands)
    • Bluetooth: Bluetooth® 5.4 (with MLO and 4KQAM)

Internal I/O

  • Headers:
    • 1x Thunderbolt 5 card connector
    • Multiple power connectors (CPU, PCIe, ATX)
    • System fan headers, RGB LED connectors
    • TPM 2.0 pin header
    • USB ports for internal connections

LED Features

  • Debug LEDs: 4x EZ Debug LED, 1x EZ Digit Debug LED

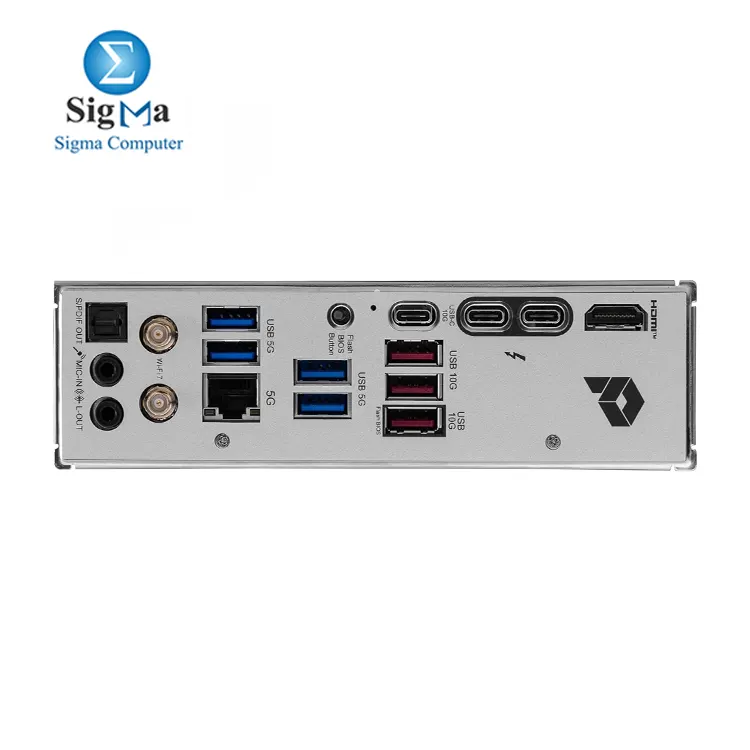

Back Panel Ports

  • 5G LAN, Wi-Fi/Bluetooth, Audio connectors, HDMI™, Thunderbolt™ 4, USB 5Gbps/10Gbps Type-A and Type-C, S/PDIF-Out, Flash BIOS Button

Operating System

  • OS Supported: Windows® 11 64-bit

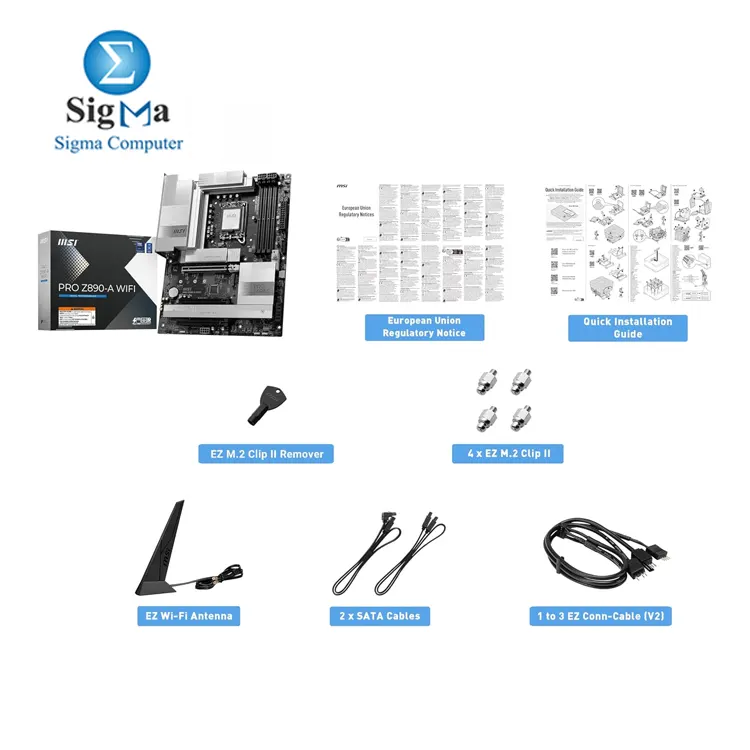

Box Content

  • Form Factor: ATX (243.84mm x 304.8mm)



CategoryDesktop
SubcategoryMotherboard
BrandMSI
ModelZ890-A
