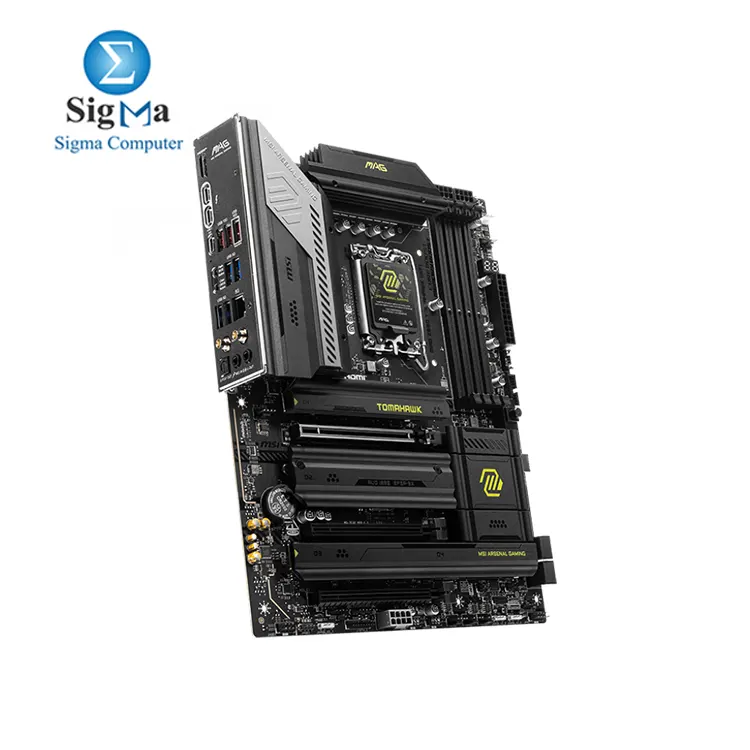

MSI MAG Z890 Tomahawk WiFi Gaming Motherboard (Supports Core Ultra Series 2 Intel Processors, LGA 1851, DDR5, PCIe 5.0, M.2, SATA, 5Gbps LAN, USB Type-C, Wi-Fi 7, Bluetooth 5.4, Thunderbolt 4, ATX) | 20499 EGP

MSI MAG Z890 Tomahawk WiFi Gaming Motherboard Supports Core Ultra Series 2 Intel Processors LGA 1851 DDR5 PCIe 5.0 M.2 SATA 5Gbps LAN USB Type-C Wi-Fi 7 Bluetooth 5.4 Thunderbolt 4 ATX

20499 LE
Availability: In Stock only 2 item left
shipped by (sigma)
Point: 35

Brand : MSI brand

Model : Z890

Seller : sigma

Viewed : 661 items

The MSI MAG Z890 Tomahawk WiFi Gaming Motherboard is designed for high-performance gaming and content creation. Here’s a summary of its key features:

  • Socket & Compatibility: Supports Intel Core Ultra Series 2 processors with an LGA 1851 socket.
  • Memory: Compatible with DDR5 RAM, providing faster performance and future-proofing for your system.
  • PCIe 5.0: Supports the latest PCIe 5.0 standard, offering double the bandwidth of PCIe 4.0 for faster data transfer, particularly useful for next-gen GPUs and storage devices.
  • Storage: Includes multiple M.2 and SATA slots for flexible storage configurations.
  • Networking: Comes with 5Gbps LAN for fast wired connections, plus built-in Wi-Fi 7 and Bluetooth 5.4 for wireless connectivity.
  • Thunderbolt 4: Offers high-speed data transfer and support for external devices.
  • USB Type-C: Features a modern USB Type-C port for easy connection to newer devices.
  • Form Factor: ATX, suitable for mid to full-sized PC cases.


MSI MAG Z890 Tomahawk WiFi Gaming Motherboard

Chipset

  • Intel Z890 chipset, compatible with Intel Core Ultra Processors (Series 2) for LGA 1851 socket.

CPU Support

  • Supports Intel Core Ultra processors (Series 2).
  • LGA 1851 socket for compatibility.

Memory

  • 4x DDR5 UDIMM slots, with a maximum capacity of 256GB.
  • Memory speed support:
    • 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s.
    • Overclocking potential:
      • 1DPC 1R: up to 9200+ MT/s.
      • 1DPC 2R: up to 7200+ MT/s.
      • 2DPC 1R: up to 4800+ MT/s.
      • 2DPC 2R: up to 4800+ MT/s.
  • Supports Intel XMP 3.0 and Memory Overclocking.
  • Dual-Controller Dual-Channel mode, Non-ECC, Un-buffered memory.

Graphics

  • 1x HDMI™ 2.1 (4K 120Hz).
  • 2x Type-C DisplayPort and Thunderbolt™ 4 ports supporting:
    • DisplayPort 2.1 with UHBR20 over USB Type-C.
    • Maximum resolution: 4K@120Hz / 8K@60Hz (requires processor with integrated graphics).

PCI-E Slots

  • 3x PCI-E x16 slots:
    • PCI-E 1 (Gen PCIe 5.0, up to x16, from CPU).
    • PCI-E 2 (Gen PCIe 4.0, up to x4, from Chipset).
    • PCI-E 3 (Gen PCIe 4.0, up to x4, from Chipset).

Audio

  • Realtek® ALC1220P Codec for 7.1-Channel High Definition Audio.
  • Supports S/PDIF output.

Storage

  • 4x M.2 slots:
    • M.2_1 (PCIe 5.0 x4, from CPU).
    • M.2_2 (PCIe 4.0 x4, from CPU).
    • M.2_3 (PCIe 4.0 x4, from Chipset).
    • M.2_4 (PCIe 4.0 x4 / SATA mode, from Chipset).
  • 4x SATA 6Gbps ports.
  • RAID support for RAID 0, RAID 1, RAID 5, RAID 10 for SATA and NVMe storage.

Thunderbolt & USB Ports

  • 2x Thunderbolt™ 4 ports (rear):
    • Supports up to 40Gbps transfer rate with Thunderbolt devices.
    • Daisy-chaining support for up to 3 Thunderbolt 4 devices.
    • Supports 8K displays.
  • USB ports:
    • 4x USB 2.0 (Front).
    • 4x USB 5Gbps Type-A (Rear).
    • 2x USB 5Gbps Type-A (Front).
    • 3x USB 10Gbps Type-A (Rear).
    • 1x USB 10Gbps Type-C (Rear).
    • 1x USB 20Gbps Type-C (Front).

LAN & Wireless

  • Intel Killer™ E5000 5Gbps LAN.
  • Intel Killer™ BE1750x Wi-Fi 7:
    • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz bands up to 5.8Gbps.
    • Bluetooth 5.4 support.

Internal I/O

  • Includes a variety of connectors for cooling, lighting, and additional connectivity options:
    • 1x Thunderbolt5 card connector.
    • 1x CPU fan, 6x system fan connectors.
    • RGB LED connectors.
    • TPM pin header (supports TPM 2.0).

LED Features

  • 4x EZ Debug LED and 1x EZ Digit Debug LED for troubleshooting.

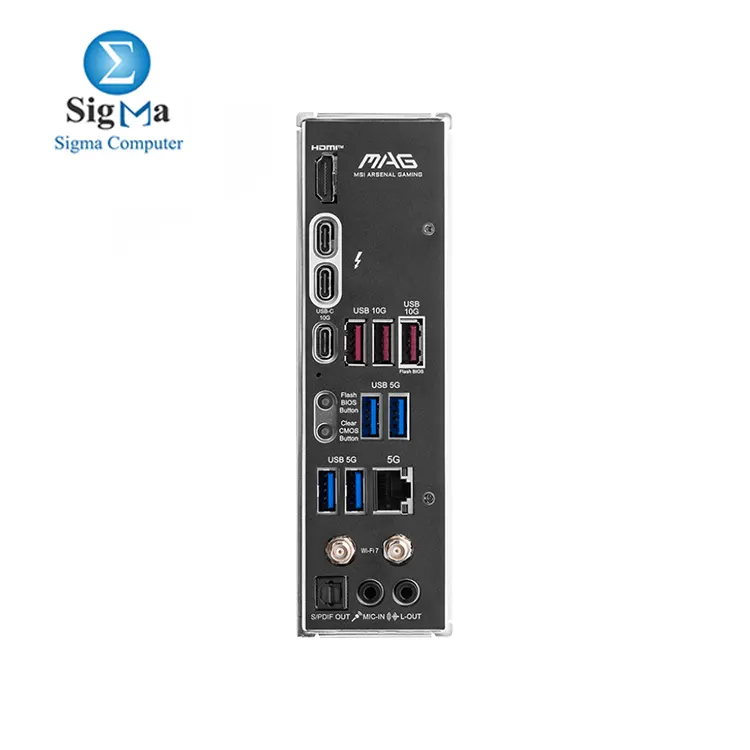

Back Panel Ports

  • USB, LAN, audio, HDMI, Thunderbolt 4, and S/PDIF connectors.

Operating System Support

  • Compatible with Windows 11 64-bit.

Physical Dimensions

  • ATX size: 243.84mm x 304.8mm.
CategoryDesktop
SubcategoryMotherboard
BrandMSI
ModelZ890
