MSI PRO X870-P WIFI Motherboard, ATX - Supports AMD Ryzen 9000 / 8000 / 7000 Processors, AM5 - 60A SPS VRM, DDR5 Memory Boost 8200+MT/s (OC), PCIe 5.0 x16 & 4.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN | 15499 EGP

MSI PRO X870-P WIFI Motherboard ATX - Supports AMD Ryzen 9000 8000 7000 Processors AM5 - 60A SPS VRM DDR5 Memory Boost 8200 MT s OC PCIe 5.0 x16 4.0 x16 M.2 Gen5 Wi-Fi 7 5G LAN

15499 LE
shipped by (sigma)
Point: 30

Brand : MSI brand

Model : X870-P

Seller : sigma

Viewed : 706 items

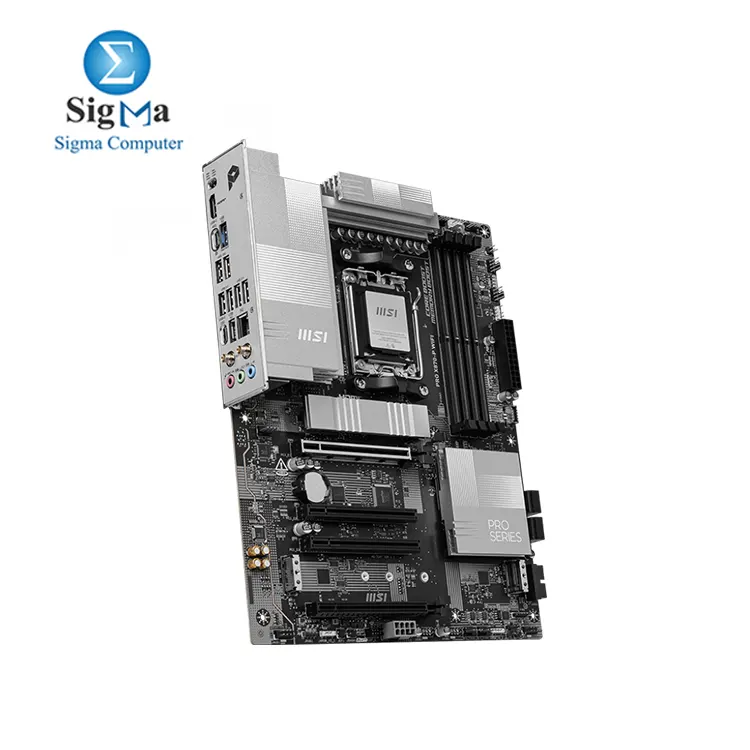

MSI PRO X870-P WIFI motherboard is a high-performance option designed for AMD's latest processors. Here's a summary of its key features:

  • Compatibility: Supports AMD Ryzen 9000, 8000, and 7000 series processors with the AM5 socket.
  • Power Delivery: Equipped with a 60A SPS VRM (Voltage Regulator Module) for stable power delivery, ensuring efficient and reliable performance.
  • Memory Support: Supports DDR5 memory with overclocking capabilities up to 8200+ MT/s for faster data transfer speeds.
  • PCIe Slots: Features PCIe 5.0 x16 for top-tier GPU performance, alongside PCIe 4.0 x16 for additional expansion cards.
  • Storage: Includes M.2 Gen5 slots for ultra-fast storage options.
  • Networking: Built-in Wi-Fi 7 for faster wireless connectivity and 5G LAN for high-speed wired networking.
  • Form Factor: ATX, offering ample space for components and expansion.


MSI PRO X870-P WIFI motherboard is designed to provide robust performance for AMD's latest Ryzen processors and high-speed connectivity options.

Key Features:

  • Chipset: AMD X870

  • CPU Support: Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors (Socket AM5).

  • Memory:

    • 4x DDR5 UDIMM slots with a maximum capacity of 256GB.
    • Supports DDR5 speeds of 8200 - 5600 MT/s (OC) and 5600 - 4800 MT/s (JEDEC).
    • Overclocking support with Ryzen™ 9000 Series CPUs:
      • 1DPC 1R up to 8200+ MT/s
      • 1DPC 2R up to 6400+ MT/s
      • 2DPC 1R up to 6400+ MT/s
      • 2DPC 2R up to 4800+ MT/s.
    • Dual-Channel mode, Non-ECC, and Un-buffered memory.
  • Graphics:

    • 1x HDMI™ 2.1 supporting up to 4K 60Hz (with supported integrated graphics).
    • 1x Type-C DisplayPort supporting DisplayPort 1.4 with HBR3 over USB Type-C.
  • PCIe Slots:

    • 4x PCI-E x16 slots:
      • PCI_E1: PCIe 5.0 x16 (for Ryzen™ 9000/7000 Series)
      • PCI_E2: PCIe 3.0 x1 (from chipset)
      • PCI_E3: PCIe 3.0 x1 (from chipset)
      • PCI_E4: PCIe 4.0 x4 (from chipset).
  • Audio: Realtek® ALC897, 7.1-Channel High Definition Audio.

  • Storage:

    • 3x M.2 slots:
      • M.2_1: PCIe 5.0 x4 (for Ryzen™ 9000/7000 Series)
      • M.2_2: PCIe 4.0 x4 (from chipset)
      • M.2_3: PCIe 4.0 x2 (from chipset).
    • 4x SATA 6G ports.
    • RAID 0 and RAID 1 support for M.2 NVMe devices.
  • USB Ports:

    • 4x USB 2.0 (Rear)
    • 4x USB 2.0 (Front)
    • 2x USB 5Gbps Type A (Rear)
    • 2x USB 5Gbps Type A (Front)
    • 2x USB 10Gbps Type A (Rear)
    • 1x USB 10Gbps Type C (Front)
    • 1x USB 20Gbps Type C (Rear)
    • 1x USB 40Gbps Type C (Rear).
  • Networking:

    • Realtek® 8126VB 5G LAN.
    • Wi-Fi 7 (supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz up to 5.8Gbps).
    • Bluetooth® 5.4 with support for MLO and 4KQAM.
  • Internal I/O:

    • Multiple connectors for power, cooling, fans, RGB, and more.
    • Support for TPM 2.0.
    • 4x USB 2.0, 2x USB 5Gbps, and 1x USB 10Gbps front ports.
  • LED Features:

    • 4x EZ Debug LED for troubleshooting.

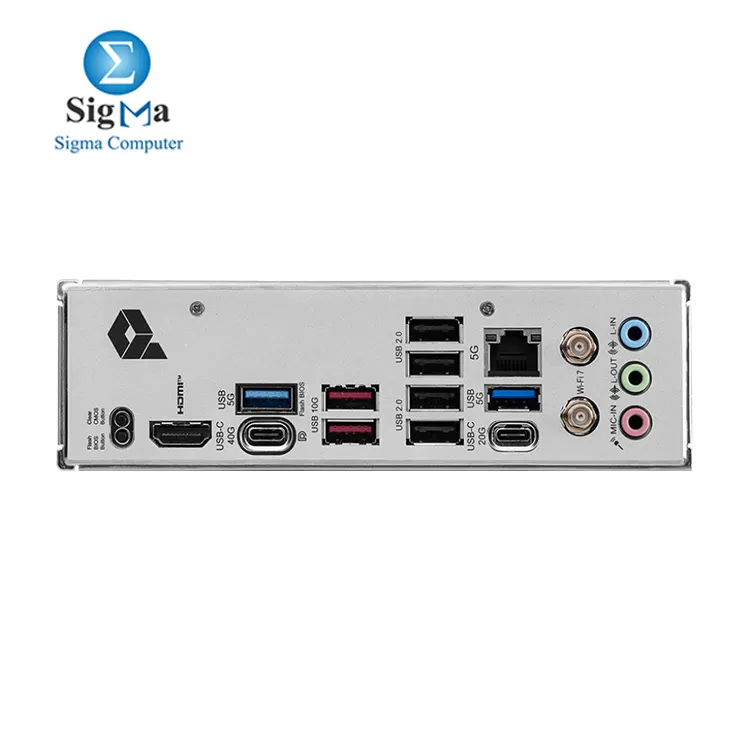

Back Panel Ports:

  • Clear CMOS Button
  • USB 5Gbps Type-A, USB 2.0, 5G LAN
  • Wi-Fi / Bluetooth antennas
  • HDMI™ output
  • USB 40Gbps Type-C, USB 10Gbps Type-A, and USB 20Gbps Type-C.

Operating System:

  • Supports Windows® 11 64-bit.

Dimensions:

  • ATX form factor: 243.84mm x 304.8mm.
CategoryDesktop
SubcategoryMotherboard
BrandMSI
ModelX870-P
