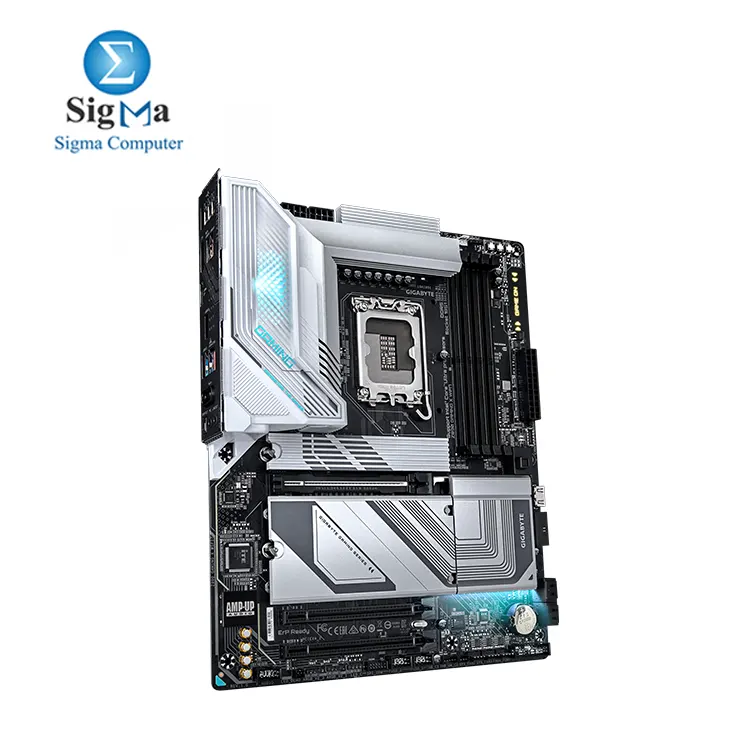

GIGABYTE Z890 Gaming X WIFI7 Intel Core Ultra (Series 2) LGA 1851 Motherboard, ATX, DDR5, 4X M.2, PCIe 5.0, USB4, WIFI7, 2.5GbE LAN, EZ-Latch | 15400 EGP

GIGABYTE Z890 Gaming X WIFI7 Intel Core Ultra Series 2 LGA 1851 Motherboard ATX DDR5 4X M.2 PCIe 5.0 USB4 WIFI7 2.5GbE LAN EZ-Latch

15400 LE
Availability: In Stock only 1 item left
shipped by (sigma)
Point: 30

Brand : Gigabyte brand

Model : Z890

Seller : sigma

Viewed : 253 items

GIGABYTE Z890 Gaming X - Key Features

  • CPU Support: LGA1851, Intel® Core™ Ultra Processors.
  • Chipset: Intel® Z890 Express.
  • Memory: DDR5, up to 256GB, speeds up to 9200 MT/s (O.C), Dual Channel, XMP support.
  • Graphics: USB4 (Type-C), DisplayPort 2.1, HDMI 1.4, supports up to 3 displays.
  • Audio: Realtek® HD Audio, up to 7.1 channels, S/PDIF Out.
  • Networking:
    • LAN: Realtek® 2.5GbE.
    • Wi-Fi: Wi-Fi 7 (2.4/5/6 GHz), Bluetooth 5.4.
  • Storage:
    • 4 x M.2 (1x PCIe 5.0, 3x PCIe 4.0).
    • 4 x SATA 6Gb/s.
    • RAID 0/1/5/10 for NVMe & SATA.
  • PCIe Slots: 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4.
  • USB Ports:
    • Back: USB4 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0.
    • Internal: USB Type-C (3.2 Gen 2), USB 3.2 Gen 1, USB 2.0.
  • Cooling: Multiple fan/pump headers, RGB support.
  • Form Factor: ATX (30.5cm x 24.4cm).
  • OS: Windows 11 (64-bit).

GIGABYTE Z890 Gaming X motherboard:


Key Specifications

CPU & Chipset

  • Socket: LGA1851, supports Intel® Core™ Ultra Processors.
  • Chipset: Intel® Z890 Express.

Memory

  • Type: DDR5, up to 256GB across 4 DIMMs.
  • Speeds: Up to 9200 MT/s (O.C).
  • Supports ECC (non-ECC mode) and XMP memory profiles.

Onboard Graphics

  • Integrated Intel® HD Graphics:
    • Ports:
      • 1 x USB4 Type-C (3840x2160 @ 144Hz, DP 2.1)
      • 1 x DisplayPort (3840x2160 @ 144Hz, DP 2.1)
      • 1 x HDMI (1920x1080 @ 30Hz, HDMI 1.4)
    • Supports up to 3 simultaneous displays.

Audio

  • Realtek® HD Audio Codec, supports up to 7.1 channels.
  • S/PDIF Out supported.

Networking

  • LAN: Realtek® 2.5GbE.
  • Wi-Fi: MediaTek Wi-Fi 7 or Realtek Wi-Fi 7 (based on PCB revision).
    • Supports 2.4/5/6 GHz bands, Bluetooth 5.4.

Expansion Slots

  • PCIe 5.0 x16 for GPU/NVMe SSD (from CPU).
  • 2 x PCIe 4.0 x4 (from Chipset).

Storage

  • M.2 Slots:
    • 1 x PCIe 5.0 x4 (CPU).
    • 3 x PCIe 4.0 x4 (Chipset).
  • SATA: 4 x 6Gb/s ports.
  • RAID 0/1/5/10 support for both NVMe and SATA.

USB Ports

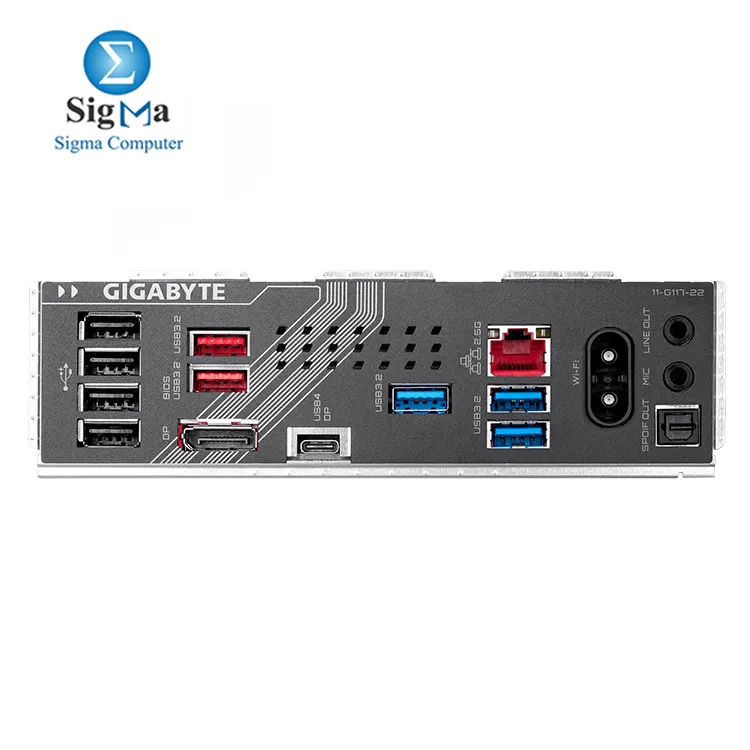

  • Back Panel:
    • 1 x USB4 Type-C.
    • 2 x USB 3.2 Gen 2 Type-A.
    • 3 x USB 3.2 Gen 1.
    • 4 x USB 2.0/1.1.
  • Internal:
    • 1 x USB Type-C (USB 3.2 Gen 2).
    • 1 x USB 3.2 Gen 1 header.
    • 2 x USB 2.0/1.1 headers.

Cooling & Monitoring

  • Multiple fan headers with pump and RGB support.
  • Voltage, temperature, and flow rate detection.

BIOS

  • AMI UEFI BIOS with Q-Flash and Q-Flash Plus.

Form Factor

  • ATX (30.5cm x 24.4cm).

OS Support

  • Windows 11 (64-bit).
CategoryDesktop
SubcategoryMotherboard
BrandGigabyte
ModelZ890
