DeepCool PF650 | 80 PLUS 230V EU | 650W | 120mm Hypro Bearing Fan | Flat Black Cables | OPP, OVP, SCP Protection | 24(20+4) Pin, 8(4+4) Pin, 6+2 Pin x2, SATA x6 | 150×140×86mm | MTBF 100,000 Hours | 1500 EGP

DeepCool PF650 80 PLUS 230V EU 650W 120mm Hypro Bearing Fan Flat Black Cables OPP OVP SCP Protection 24 20 4 Pin 8 4 4 Pin 6 2 Pin x2 SATA x6 150 140 86mm MTBF 100 000 Hours

1500 LE
shipped by (sigma)
Point: 10

Brand : DEEPCOOL brand

Seller : sigma

Viewed : 441 items

DeepCool PF650 Power Supply – 80 PLUS Standard

  • Efficiency: 80 PLUS 230V EU Standard, 85% at 50% load

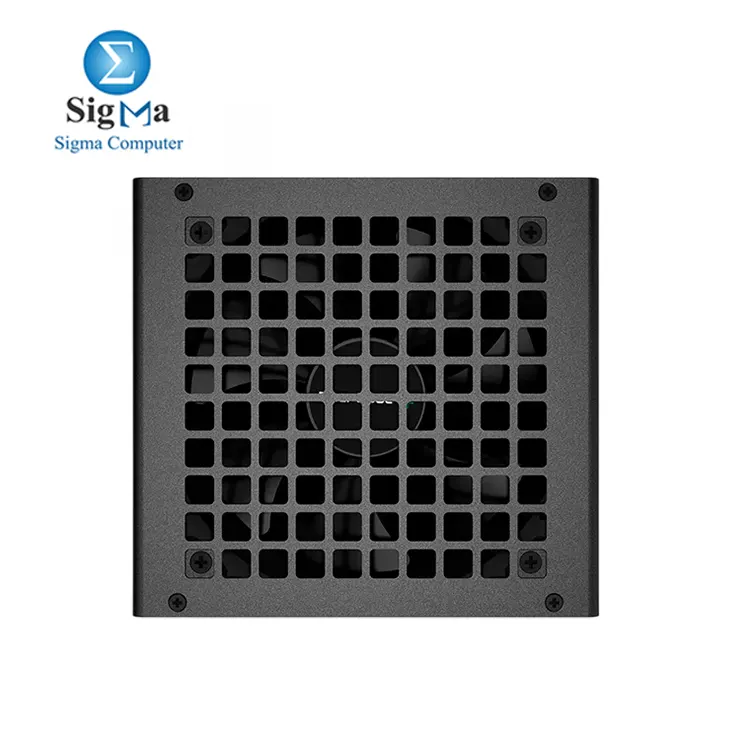

  • Cooling: 120mm Hypro Bearing Fan for low noise and durability
  • Cables: Flat black cables for better cable management
  • Protection: OPP, OVP, SCP (Over Power, Over Voltage, Short Circuit)
  • Connectors:
    • 24 (20+4) Pin x1 (Main Power)
    • 8 (4+4) Pin x1 (EPS 12V)
    • 6+2 Pin x2 (PCI-E)
    • SATA x6 + 4-Pin Peripheral x2
  • Size: 150×140×86mm
  • MTBF: 100,000 Hours
  • Model: R-PF650D-HA0B-EU | EAN: 6933412711469

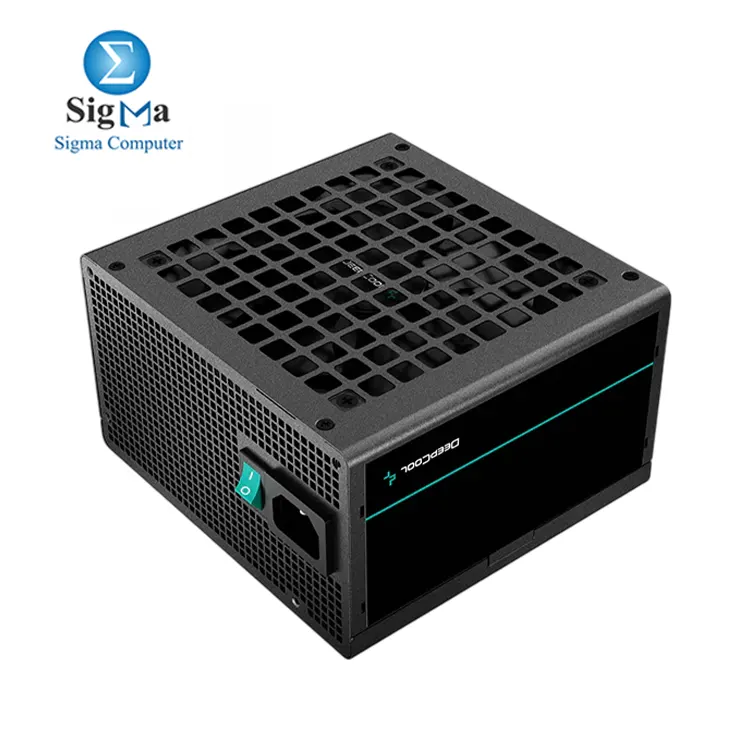

DeepCool PF650 Power Supply

The DeepCool PF650 is a reliable and efficient 80 PLUS Standard power supply, designed to deliver stable power performance at an affordable price.

Key Features

  • 80 PLUS Standard Efficiency: Certified for 230V EU Standard, ensuring 85% efficiency at 50% typical load, reducing energy waste and heat.
  • Silent Hydraulic Bearing Fan: A 120mm fluid bearing fan provides low-noise operation, enhances lifespan, and minimizes friction and vibration.
  • Flat Black Cables: Fixed flat black cables ensure easier cable management and a cleaner build.
  • Reliable Protection: Equipped with Over Power Protection (OPP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP) for maximum safety.

Connectors

  • Main Power Connector: 24 (20+4) Pin x1
  • EPS 12V Connector: 8 (4+4) Pin x1
  • PCI-E Connector: 6+2 Pin x2
  • SATA + 4-Pin Peripheral: 3 SATA + 1 Peripheral per cable (x2)

Technical Specifications

  • Type: ATX12V V2.4
  • Dimensions: 150×140×86mm (W x L x H)
  • 80 PLUS Certification: 230V EU White
  • Fan Size: 120mm
  • Fan Bearing: Hypro Bearing
  • Topology: Active PFC + Double Tube Forward
  • Capacitors: Taiwan Bulk Capacitor
  • Power Good Signal: 100-500ms
  • Hold Up Time: ≥10ms at 75% Load
  • Efficiency: ≥85% at 50% Load
  • Protection: OPP, OVP, SCP
  • Operating Temperature: 0-30°C
  • Regulatory Compliance: CB, CCC, CE, UKCA, EAC, RCM, BIS
  • ErP Regulation: ErP 2010
  • MTBF: 100,000 Hours

Model Number: R-PF650D-HA0B-EU
EAN: 6933412711469




CategoryDesktop
SubcategoryPower Supply
BrandDEEPCOOL
ModelR-PF650D-HA0B-EU
