DeepCool CC560 Mid-Tower Case And DeepCool PF650 80 PLUS 230V EU 650W | 2999 EGP

DeepCool CC560 Mid-Tower Case And DeepCool PF650 80 PLUS 230V EU 650W

2999 LE
Availability: In Stock
shipped by (sigma)
Point: 15

Brand : DEEPCOOL brand

Seller : sigma

Viewed : 972 items

DeepCool CC560 Mid-Tower Case

  • Airflow & Cooling: Ventilated front panel, mesh top, 4x pre-installed LED fans. Supports up to 6x 120mm fans & 360mm radiator.
  • Compatibility: Max CPU Cooler Height: 163mm, Max GPU Length: 370mm, Max PSU Length: 170mm.
  • Storage: 2x 2.5” SSDs, 2x 3.5” HDDs (removable cage).
  • Design & Features: Tempered glass side panel, magnetic dust filter, USB 3.0 & USB 2.0 front I/O.
  • Dimensions: 416×210×477mm, Net Weight: 5.25Kg.

DeepCool PF650 80 PLUS 230V EU Power Supply

  • Efficiency: 80 PLUS Standard, ≥85% at 50% load.
  • Cooling: 120mm silent hydraulic bearing fan.
  • Protection: OPP, OVP, SCP.
  • Connectors: 24 (20+4) Pin x1, 8 (4+4) Pin x1, 6+2 Pin PCI-E x2, SATA x6, Peripheral x2.
  • Dimensions: 150×140×86mm, MTBF: 100,000 hours.

DeepCool CC560 Mid-Tower Case & DeepCool PF650 80 PLUS 230V EU 650W Power Supply

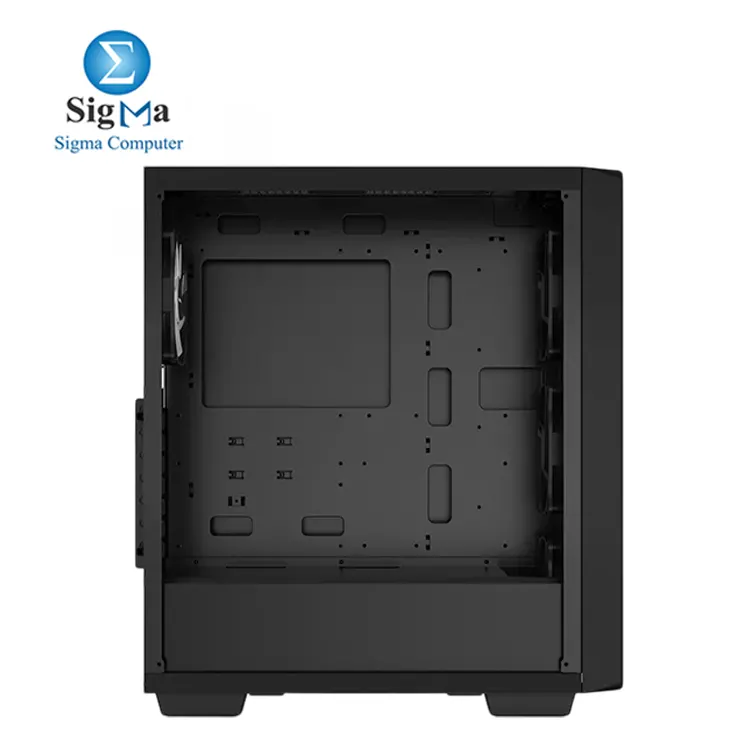

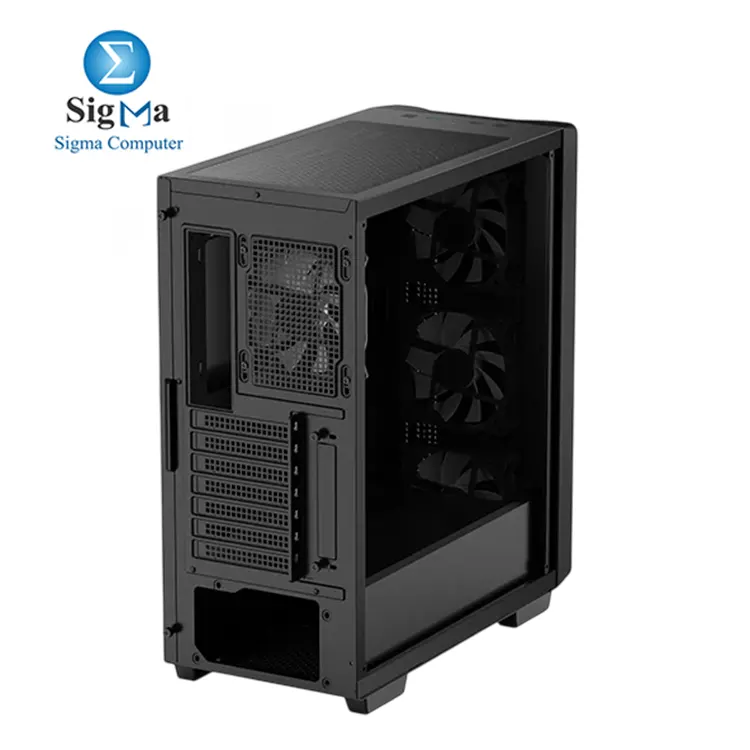

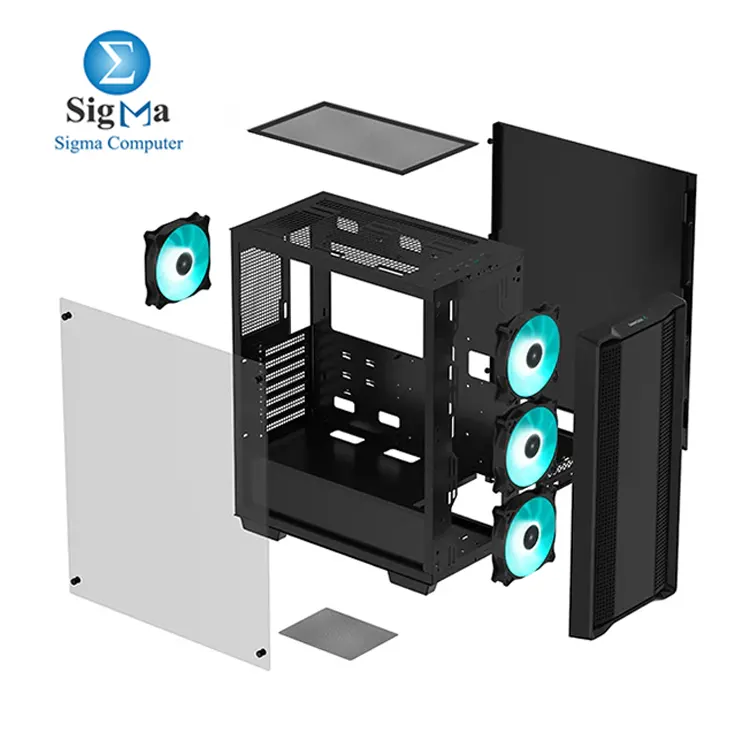

DeepCool CC560 Mid-Tower Case

The DeepCool CC560 Mid-Tower Case offers excellent value with a spacious interior, a full-sized tempered glass side panel, and four pre-installed LED fans for strong airflow.

Optimized Airflow Design

  • A ventilated front panel and a large mesh top panel ensure efficient cooling.
  • Pre-installed with four LED fans for high airflow and optimal system temperatures.

Cooling Support

  • Supports AIO liquid cooling with space for up to a 360mm radiator in the front or a 240mm radiator on top.
  • Fan Support:
    • Up to 6x 120mm or 4x 140mm case fans.
  • Radiator Support:
    • Front: 120mm / 140mm / 240mm / 280mm / 360mm
    • Top: 120mm / 240mm
    • Rear: 120mm

Hardware Compatibility

  • Max CPU Cooler Height: 163mm
  • Max GPU Length: 370mm
  • Max PSU Length: 170mm

Storage Options

  • Supports up to 2x 2.5” SSDs on the backplate.
  • Includes a removable drive cage for 2x 3.5” HDDs under the PSU shroud.

Additional Features

  • Full-sized tempered glass side panel.
  • Magnetic dust filter on the top panel.
  • Front I/O panel with USB 3.0, USB 2.0, and a combo audio jack.

Technical Specifications

  • Product Dimensions: 416×210×477mm (L×W×H)
  • Net Weight: 5.25Kg
  • Materials: ABS + SPCC + Tempered Glass
  • Motherboard Support: Mini-ITX / Micro-ATX / ATX
  • Front I/O Ports: USB 3.0 ×1, USB 2.0 ×1, Audio ×1
  • Drive Bays:
    • 3.5" Drive Bays: 2
    • 2.5" Drive Bays: 2
  • Expansion Slots: 7
  • Pre-Installed Fans:
    • Front: 3×120mm
    • Rear: 1×120mm
  • Power Supply Type: ATX PS2 (Max Length: 170mm)
  • EAN Code: 6933412714880
  • PN Code: R-CC560-BKGAA4-G-1

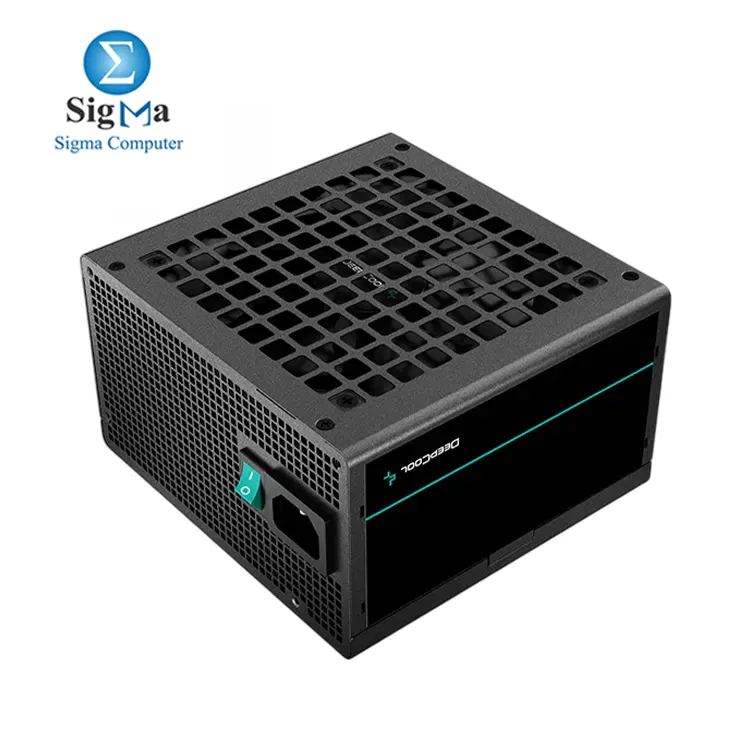

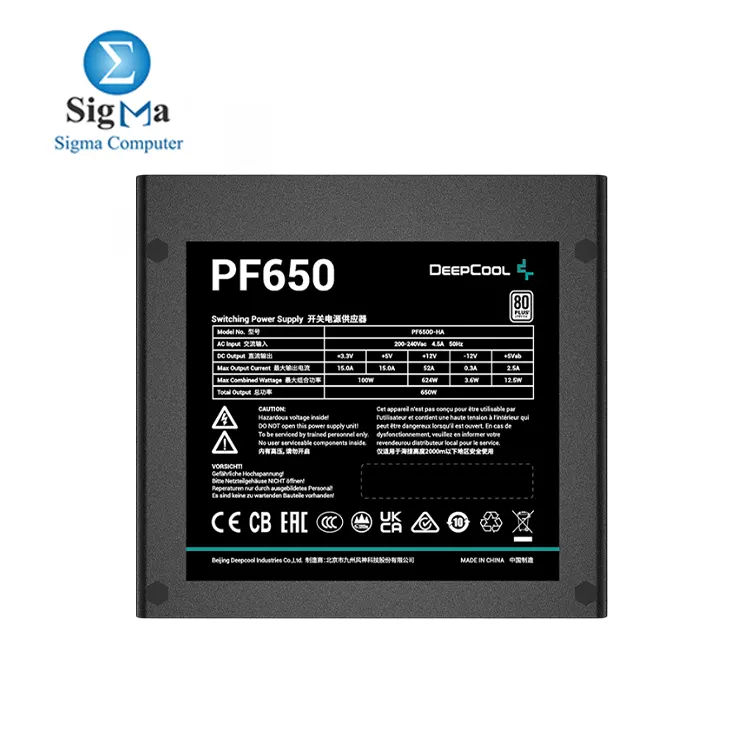

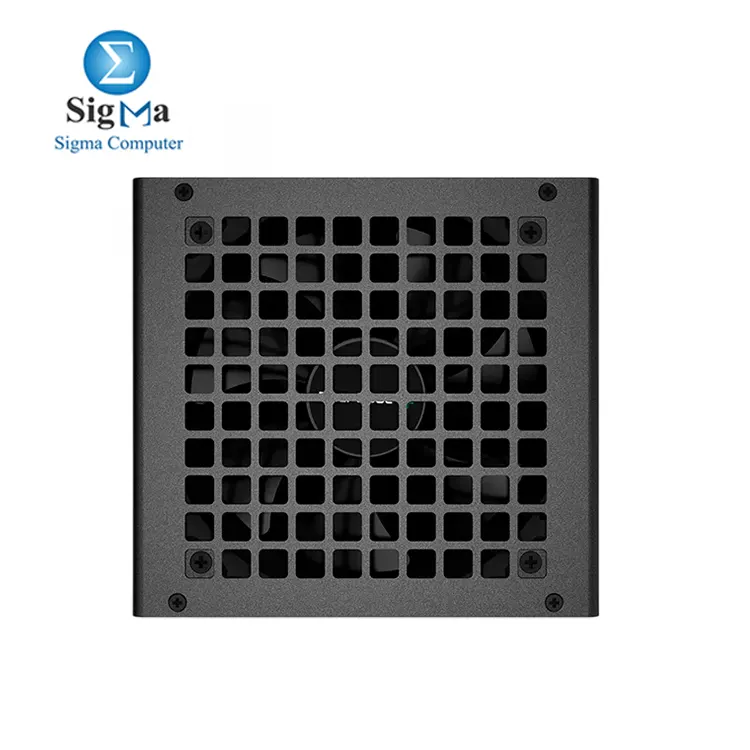

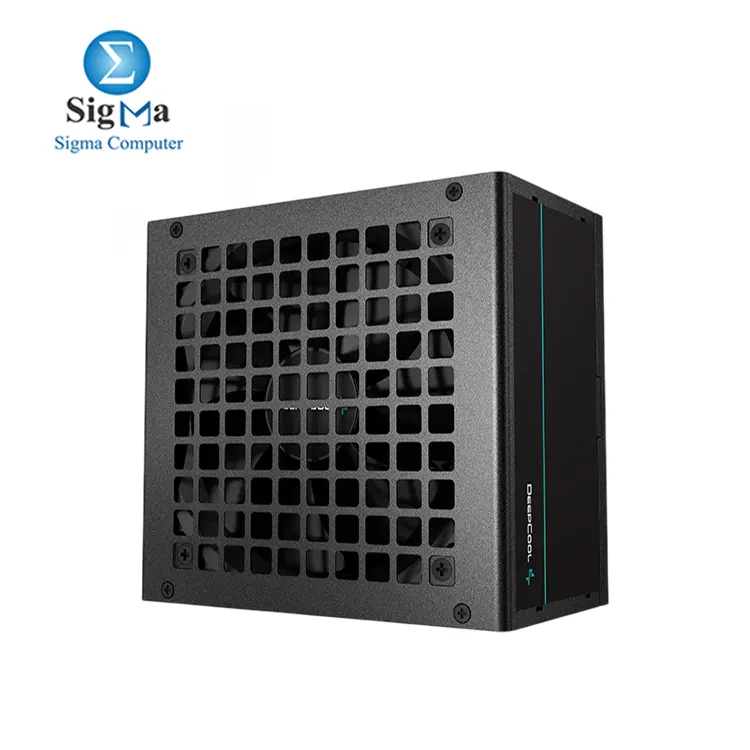

DeepCool PF650 Power Supply

The DeepCool PF650 is a reliable 80 PLUS Standard power supply, designed for stable performance and efficiency at an affordable price.

Key Features

  • 80 PLUS Standard Efficiency: Certified for 230V EU, ensuring 85% efficiency at 50% typical load to reduce energy waste.
  • Silent Hydraulic Bearing Fan: A 120mm fluid bearing fan provides low-noise operation, longer lifespan, and reduced vibration.
  • Flat Black Cables: Fixed flat black cables for easier cable management and a cleaner build.
  • Reliable Protection: Equipped with Over Power Protection (OPP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP).

Connectors

  • Main Power Connector: 24 (20+4) Pin x1
  • EPS 12V Connector: 8 (4+4) Pin x1
  • PCI-E Connector: 6+2 Pin x2
  • SATA + 4-Pin Peripheral: 3 SATA + 1 Peripheral per cable (x2)

Technical Specifications

  • Type: ATX12V V2.4
  • Dimensions: 150×140×86mm (W x L x H)
  • 80 PLUS Certification: 230V EU White
  • Fan Size: 120mm
  • Fan Bearing: Hypro Bearing
  • Topology: Active PFC + Double Tube Forward
  • Capacitors: Taiwan Bulk Capacitor
  • Power Good Signal: 100-500ms
  • Hold Up Time: ≥10ms at 75% Load
  • Efficiency: ≥85% at 50% Load
  • Protection: OPP, OVP, SCP
  • Operating Temperature: 0-30°C
  • Regulatory Compliance: CB, CCC, CE, UKCA, EAC, RCM, BIS
  • ErP Regulation: ErP 2010
  • MTBF: 100,000 Hours
  • Model Number: R-PF650D-HA0B-EU
  • EAN: 6933412711469
