MSI RTX™ 5070 12GB GDDR7, 2655 MHz, 192-bit, PCIe Gen 5, 250W TDP, Triple Fan, 337mm Length, 1x16-pin, 3x DP 2.1b + 1x HDMI 2.1b | 49999 EGP

MSI RTX 5070 12GB GDDR7 2655 MHz 192-bit PCIe Gen 5 250W TDP Triple Fan 337mm Length 1x16-pin 3x DP 2.1b 1x HDMI 2.1b

49999 LE
shipped by (sigma)
Point: 50

Brand : MSI brand

Model : G5070-12VGSL

Seller : sigma

Viewed : 163 items

MSI GeForce RTX™ 5070 12G VANGUARD SOC LAUNCH EDITION

Overview:
Experience cutting-edge performance with the MSI GeForce RTX™ 5070 VANGUARD SOC LAUNCH EDITION, powered by the next-generation NVIDIA Blackwell architecture and DLSS 4 technology.

Core Specifications:

  • Extreme Performance (via MSI Center): 2655 MHz

  • Boost Clock: 2640 MHz

  • Memory: 12GB GDDR6

  • Architecture: NVIDIA Blackwell

  • DLSS: DLSS 4

Thermal & Cooling Features:

  • HYPER FROZR Thermal Design: Advanced thermal engineering for exceptional cooling and silent operation.

  • STORMFORCE Fan: Features seven fan blades with claw texturing and a circular arc for optimized airflow and reduced noise.

  • Advanced Vapor Chamber: Transfers heat efficiently from the GPU and VRAM to the core pipes.

  • Core Pipes: Square-shaped pipes maximize heat dissipation in synergy with the vapor chamber.

  • Filled Fins: Specialized fins reduce airflow turbulence and enhance thermal efficiency.

  • Wave Curved 4.0: High-low fin design with wave-patterned edges to improve airflow dynamics.

  • Air Antegrade Fin 2.0: V-shaped cutouts and alternating fin heights at the airflow passthrough for superior efficiency.

  • Metal Backplate: Sturdy metal backplate with airflow vents and thermal pads for added cooling and structural integrity.

Additional Features:

  • Dual BIOS: Switch between GAMING mode for maximum performance and SILENT mode for ultra-quiet operation.

  • MSI Center: Monitor, tweak, and optimize your MSI hardware in real-time.

  • MSI Afterburner: Full control over overclocking with the world’s most recognized GPU tuning software


Marketing Name:
MSI GeForce RTX™ 5070 12G VANGUARD SOC LAUNCH EDITION

Model Name:
G5070-12VGSL

Graphics Processing Unit:
NVIDIA® GeForce RTX™ 5070

Interface:
PCI Express® Gen 5

Core Clocks:

  • Extreme Performance: 2655 MHz (via MSI Center)

  • Boost: 2640 MHz

CUDA® Cores:
6144 Units

Memory Speed:
28 Gbps

Memory:
12GB GDDR7

Memory Bus:
192-bit

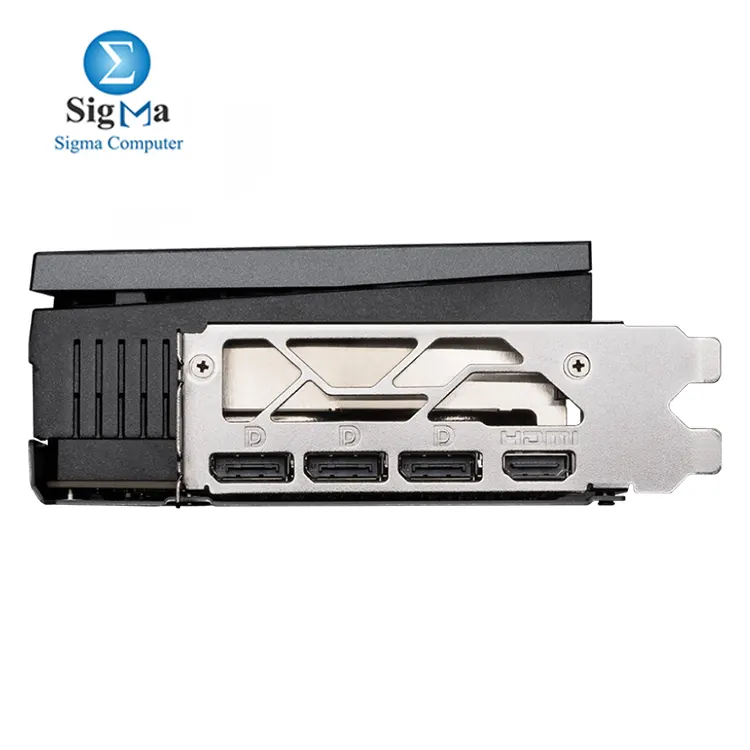

Output Ports:

  • DisplayPort x 3 (v2.1b)

  • HDMI™ x 1 (HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support:
Yes

Power Consumption:
250W

Power Connectors:
1 x 16-pin

Recommended PSU:
650W

Card Dimensions (mm):
337 x 140 x 61 mm

Weight (Card / Package):
1503 g / 3382 g

DirectX Version Support:
DirectX 12 Ultimate

OpenGL Version Support:
4.6

Maximum Displays:
4

G-SYNC® Technology:
Yes

Digital Maximum Resolution:
7680 x 4320
