MSI MAG PANO M100L PZ / WHITE – Micro-ATX case with 270° panoramic glass, supports back-connect M-ATX, 360mm top radiator, up to 10 fans, 390mm GPU, and DIY-friendly design. | 4899 EGP

MSI MAG PANO M100L PZ WHITE Micro-ATX case with 270 panoramic glass supports back-connect M-ATX 360mm top radiator up to 10 fans 390mm GPU and DIY-friendly design.

4899 LE
Availability: In Stock only 4 item left
shipped by (sigma)
Point: 40

Brand : MSI brand

Seller : sigma

Viewed : 313 items

Form Factor: Micro-ATX Tower

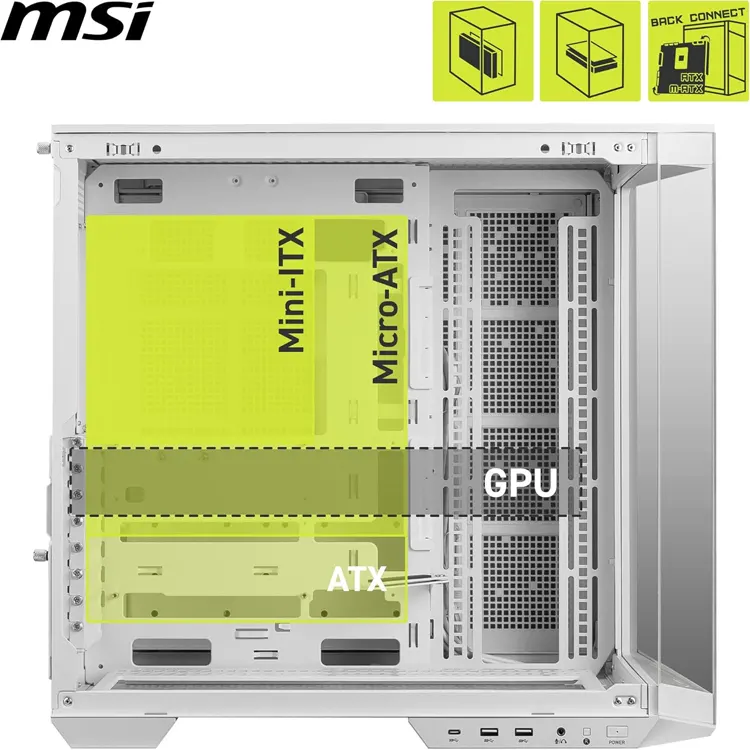

Motherboard Support: M-ATX (Back-connect) / ITX
GPU Length: Up to 390 mm (horizontal only)
CPU Cooler Height: Up to 175 mm
PSU Support: ATX, up to 200 mm
Radiator Support: Top (up to 360 mm), Rear (120 / 140 mm)
Fan Support: Up to 10 x 120 mm
Drive Bays: Up to 2 x 2.5" or 1 x 2.5" + 1 x 3.5"

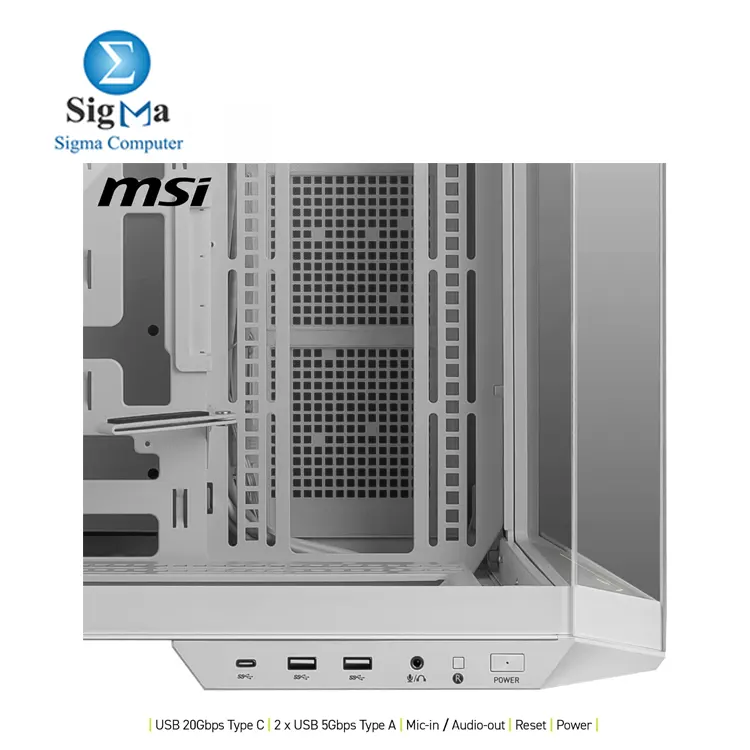

I/O Ports: USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2x2 Type-C, Audio/Mic
Features: 270° panoramic glass, magnetic dust filter, DIY-friendly cables
Dimensions: 488 x 235 x 453 mm
Weight: 8.8 kg (Net), 11.54 kg (Gross)

Model: MSI MAG PANO M100L PZ / WHITE
Case Form Factor: Micro-ATX Tower
Motherboard Support: M-ATX (Back-connect supported) / ITX
I/O Ports:

  • 1 x USB 3.2 Gen 1 Type-A

  • 1 x USB 3.2 Gen 2x2 Type-C

  • 1 x Audio-Out / Mic-in

  • 1 x Reset Button

  • 1 x Power Button

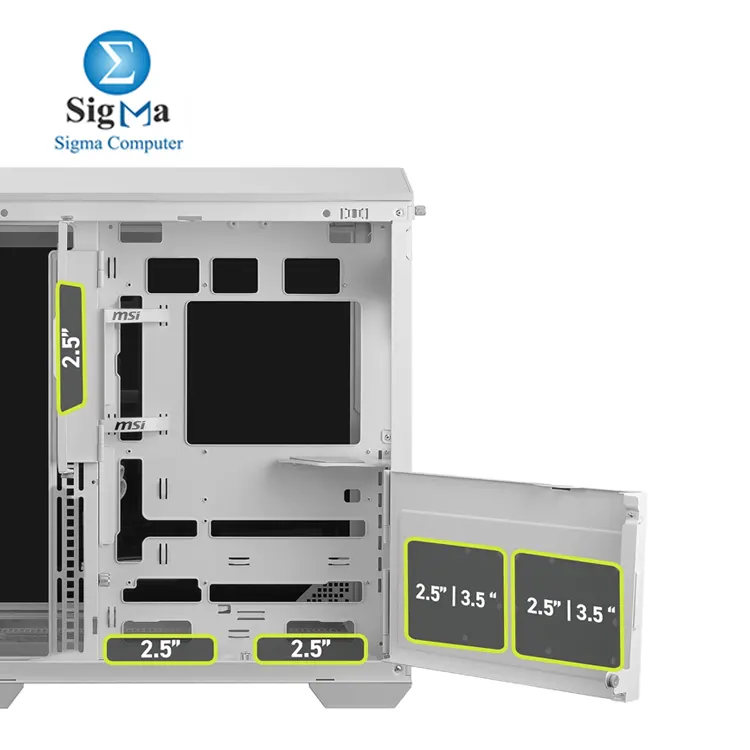

Drive Bays:

  • 1 x 2.5"

  • 1 x 2.5"/3.5" Combo
    (Supports up to 2 x 2.5" or 1 x 2.5" + 1 x 3.5")

Expansion Slots: 5
Max GPU Length: 390 mm (horizontal installation only)
Max CPU Cooler Height: 175 mm
Power Supply Support: ATX
Max PSU Length: 200 mm

Fan Support:

  • Top: 3 x 120 mm / 2 x 140 mm

  • Rear: 1 x 120 mm / 1 x 140 mm

  • Side: 3 x 120 mm

  • Bottom: 1 x 120 mm

  • PSU Shroud: 2 x 120 mm

Radiator Support:

  • Top: 120 / 240 / 360 mm

  • Rear: 120 / 140 mm

Dimensions (DxWxH): 488 x 235 x 453 mm (19.21 x 9.25 x 17.84 in)
Net Weight: 8.8 kg
Gross Weight: 11.54 kg

Features:

  • 270-degree panoramic tempered glass

  • Magnetic bottom dust filter for easy cleaning

  • DIY-friendly cable design for easier assembly

CategoryDesktop
SubcategoryComputer Case
BrandMSI
ModelMAG PANO M100L PZ / WHITE
